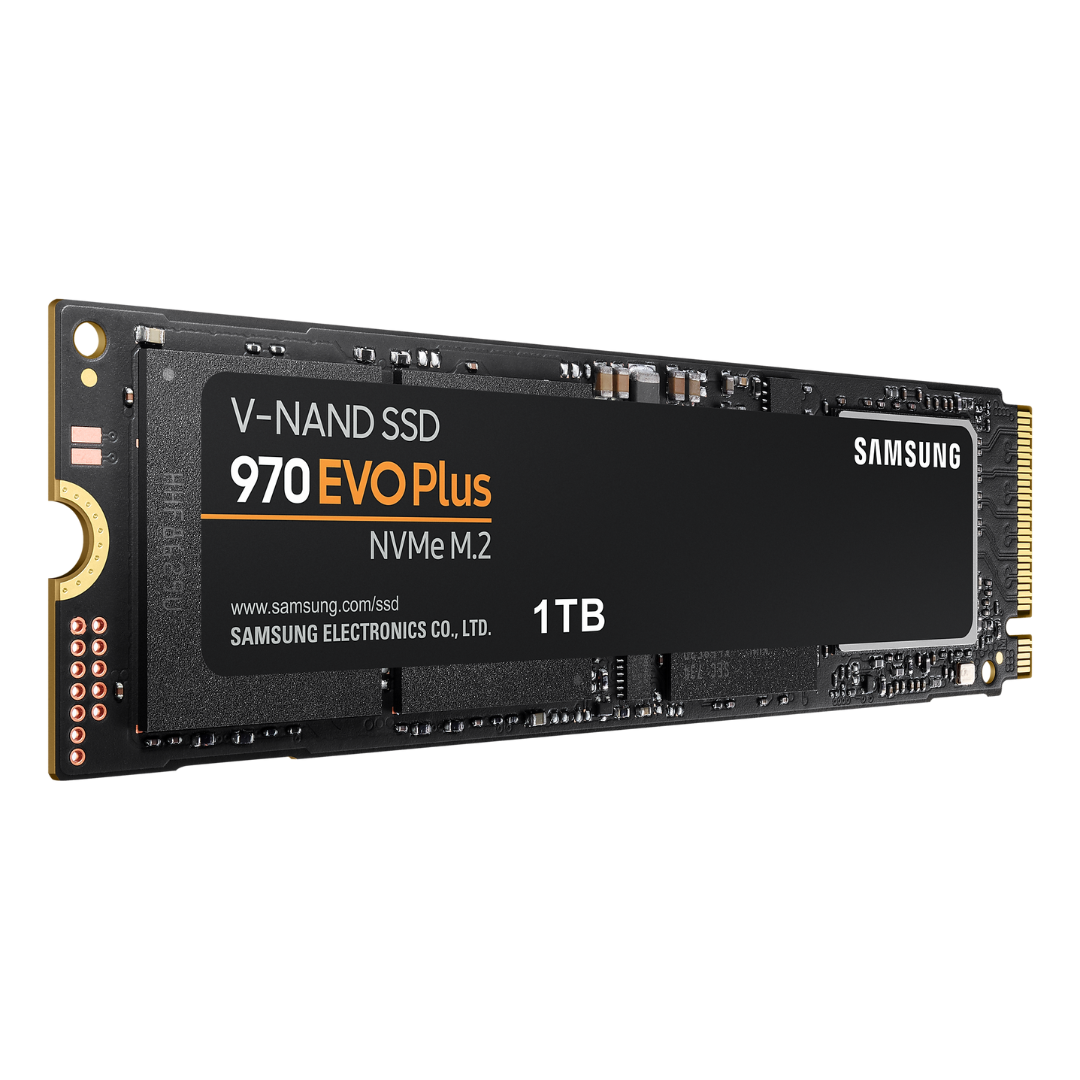

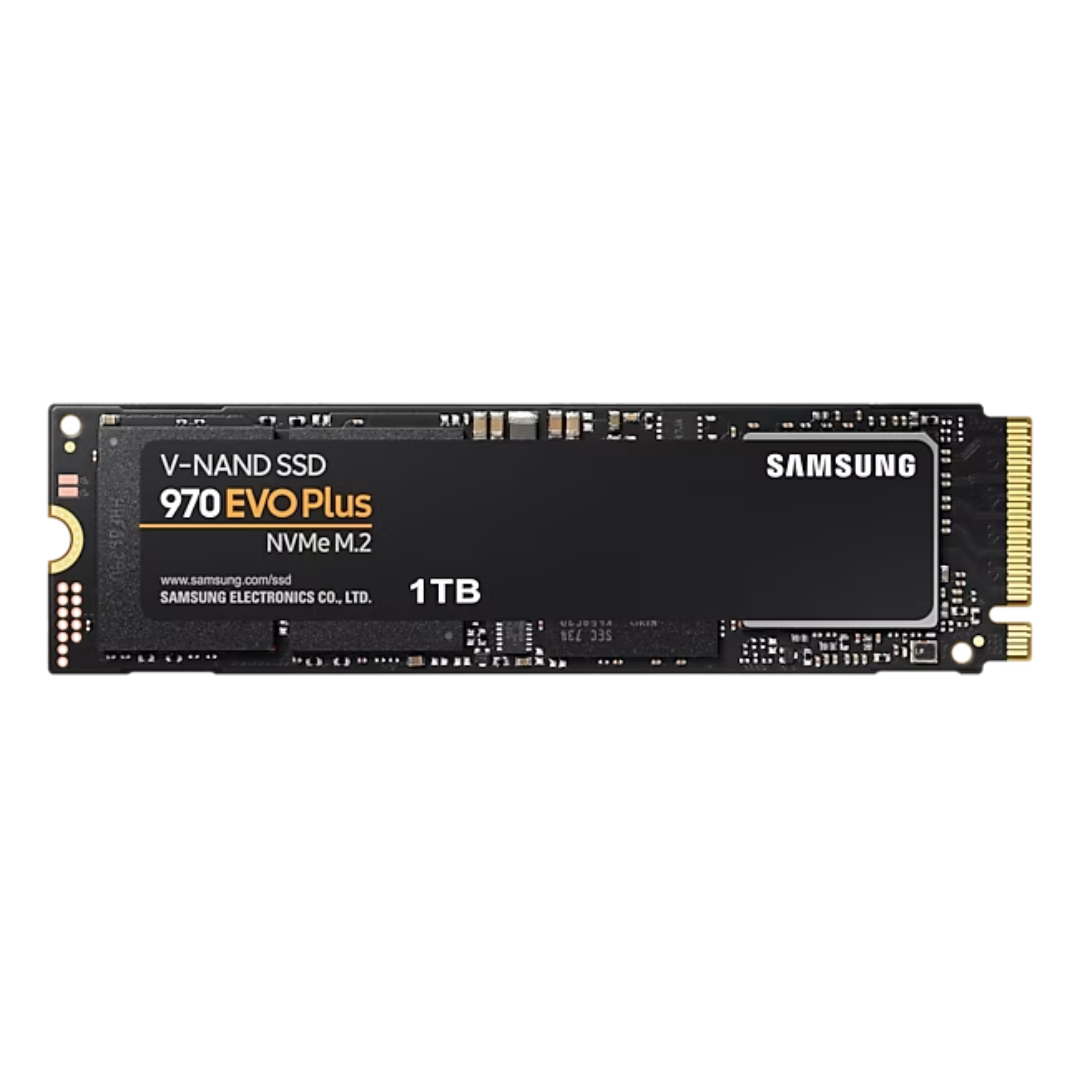

970 EVO Plus NVMe M.2 SSD 1TB - MZ-V7S1T0BW

Categorie:

DATA STORAGE M.2

Brand:

Samsung
None

970 EVO PLUS 1TB

Stock
0
MZ-V7S1T0BW
MZ-V7S1T0BW
MZ-V7S1T0BW

Product Information

General Feature

  • ApplicationClient PCs
  • Rated Capacity1,000GB (1GB=1 Billion byte by IDEMA) * Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise)
  • Form FactorM.2 (2280)
  • InterfacePCIe Gen 3.0 x 4, NVMe 1.3
  • Dimension (Pack: WxHxD)80.15 x 22.15 x 2.38 (mm)
  • WeightMax 8.0 g Weight
  • Storage MemorySamsung V-NAND 3-bit MLC
  • ControllerSamsung in-house controller
  • Cache MemorySamsung 1GB Low Power DDR4 SDRAM

Special Feature

  • TRIM SupportSupported
  • S.M.A.R.T SupportSupported
  • GC (Garbage Collection)Auto Garbage Collection Algorithm
  • Encryption SupportAES 256-bit Encryption (Class 0)TCG/Opal IEEE1667 (Encrypted drive)
  • WWN SupportNot supported
  • Device Sleep Mode SupportYes

Performance

  • Sequential ReadUp to 3,500 MB/s * Performance may vary based on system hardware & configuration
  • Sequential WriteUp to 3,300 MB/s * Performance may vary based on system hardware & configuration
  • Random Read (4KB, QD32)Up to 600,000 IOPS * Performance may vary based on system hardware & configuration
  • Random Write (4KB, QD32)Up to 550,000 IOPS * Performance may vary based on system hardware & configuration
  • Random Read (4KB, QD1)Up to 19,000 IOPS * Performance may vary based on system hardware & configuration
  • Random Write (4KB, QD1)Up to 60,000 IOPS * Performance may vary based on system hardware & configuration

Environment

  • Average Power Consumption (system level)* Average: 6 W * Maximum: 9 W (Burst mode) * Actual power consumption may vary depending on system hardware & configuration
  • Power consumption (Idle)Max. 30 mW * Actual power consumption may vary depending on system hardware & configuration
  • Allowable Voltage3.3 V ± 5 % Allowable voltage
  • Reliability (MTBF)1.5 Million Hours Reliability (MTBF)
  • Operating Temperature0 - 70 ℃ Operating Temperature
  • Shock1,500 G & 0.5 ms (Half sine)

Accessories

  • Installation KitNot Available

Software

  • Management SWMagician Software for SSD management

Warranty

  • 5-Year Limited Warrantyor 600 TBW Limited Warranty
