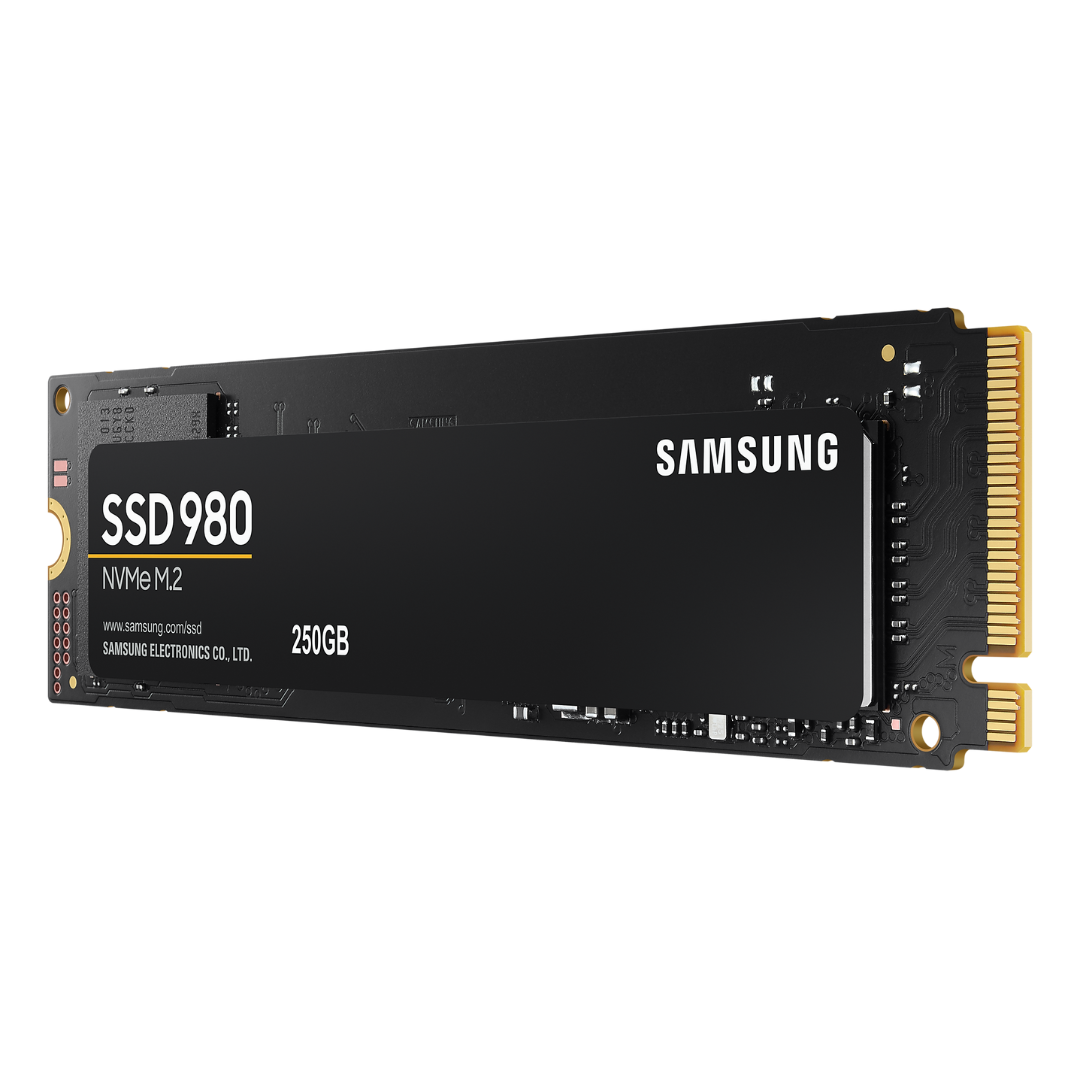

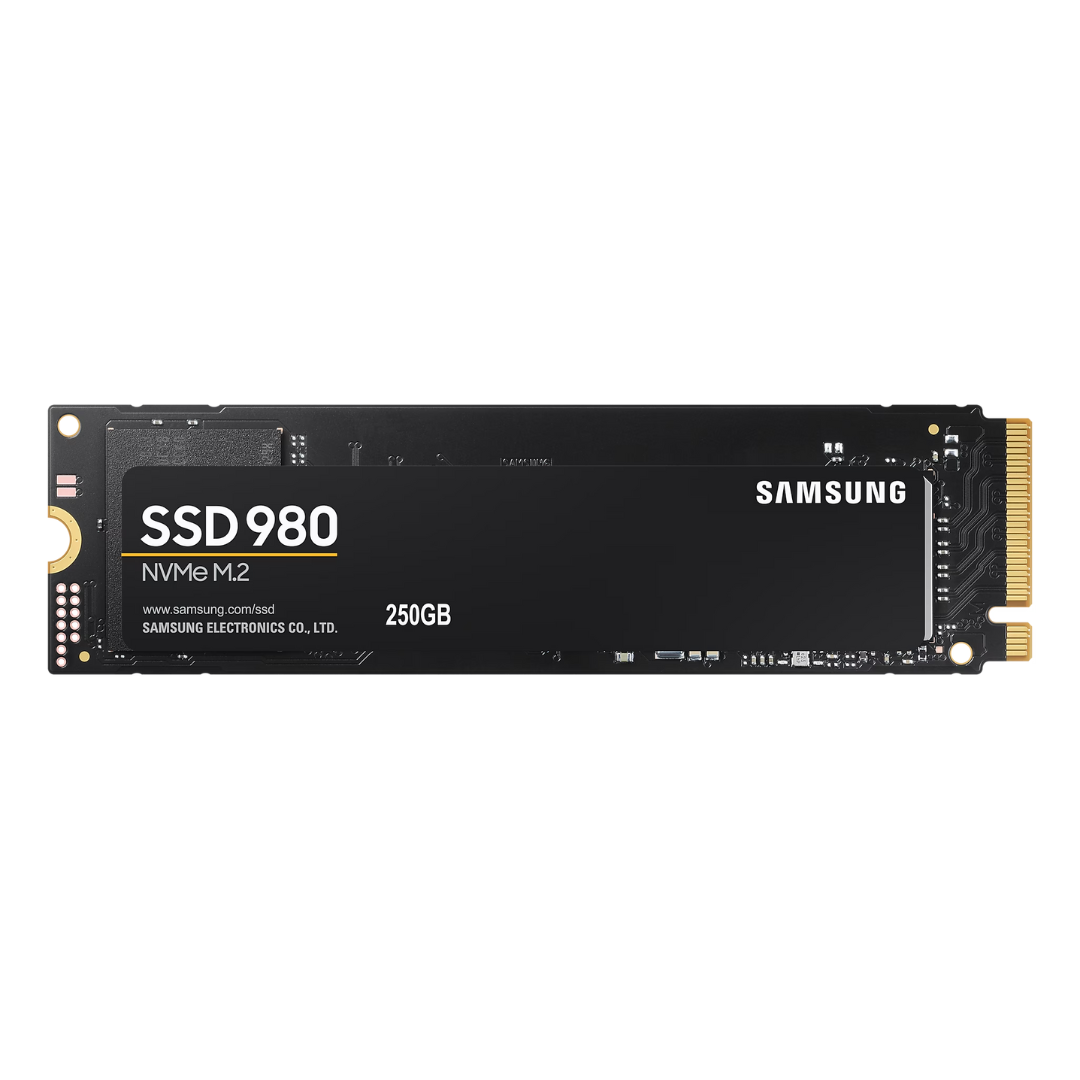

980 NVMe M.2 SSD 250GB

Categorie:

DATA STORAGE M.2

Brand:

Samsung
None
  • Samsung NVMe SSD powered by V-NAND technology
  • Up to 3,500 MB/s sequential read and 3,000 MB/s write
  • 5-year limited warranty
Stock
0
MZ-V8V250BW
MZ-V8V250BW
MZ-V8V250BW

Product Information

General Feature

  • ApplicationClient PCs
  • Rated Capacity250GB (1GB=1 Billion byte by IDEMA) * Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise)
  • Form FactorM.2 (2280)
  • InterfacePCIe Gen 3.0 x4, NVMe 1.4
  • Dimension (Pack: WxHxD)80.15 x 22.15 x 2.38 (mm)
  • WeightMax 8.0 g Weight
  • Storage MemorySamsung V-NAND 3-bit MLC
  • ControllerSamsung Pablo Controller
  • Cache MemoryHMB(Host Memory Buffer)

Special Feature

  • TRIM SupportSupported
  • S.M.A.R.T SupportSupported
  • GC (Garbage Collection)Auto Garbage Collection Algorithm
  • Encryption SupportAES 256-bit Encryption (Class 0)TCG/Opal IEEE1667 (Encrypted drive)
  • WWN SupportNot supported
  • Device Sleep Mode SupportYes

Performance

  • Sequential ReadUp to 2,900 MB/s * Performance may vary based on system hardware & configuration
  • Sequential WriteUp to 1,300 MB/s * Performance may vary based on system hardware & configuration
  • Random Read (4KB, QD32)Up to 230,000 IOPS * Performance may vary based on system hardware & configuration
  • Random Write (4KB, QD32)Up to 320,000 IOPS * Performance may vary based on system hardware & configuration
  • Random Read (4KB, QD1)Up to 17,000 IOPS * Performance may vary based on system hardware & configuration
  • Random Write (4KB, QD1)Up to 53,000 IOPS * Performance may vary based on system hardware & configuration

Environment

  • Average Power Consumption (system level)*Average: 3.7 W*Maximum: 5.6 W (Burst mode)* Actual power consumption may vary depending on system hardware & configuration
  • Power consumption (Idle)Max. 45 mW * Actual power consumption may vary depending on system hardware & configuration
  • Allowable Voltage3.3 V ± 5 % Allowable voltage
  • Reliability (MTBF)1.5 Million Hours Reliability (MTBF)
  • Operating Temperature0 - 70 ℃ Operating Temperature
  • Shock1,500 G & 0.5 ms (Half sine)

Accessories

  • Installation KitNot Available

Software

  • Management SWMagician Software for SSD management

Warranty

  • 5-Year Limited Warrantyor 150 TBW Limited Warranty
