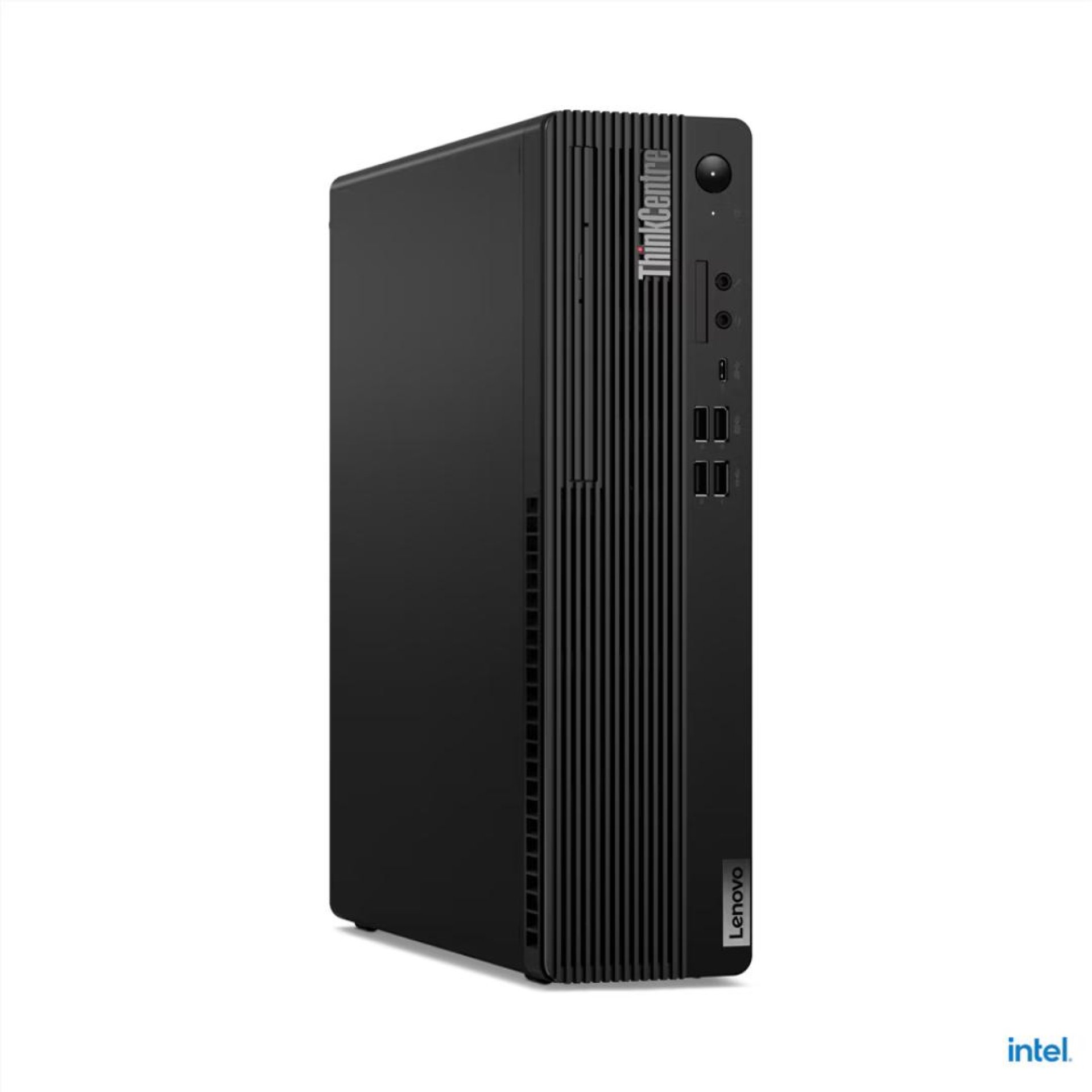

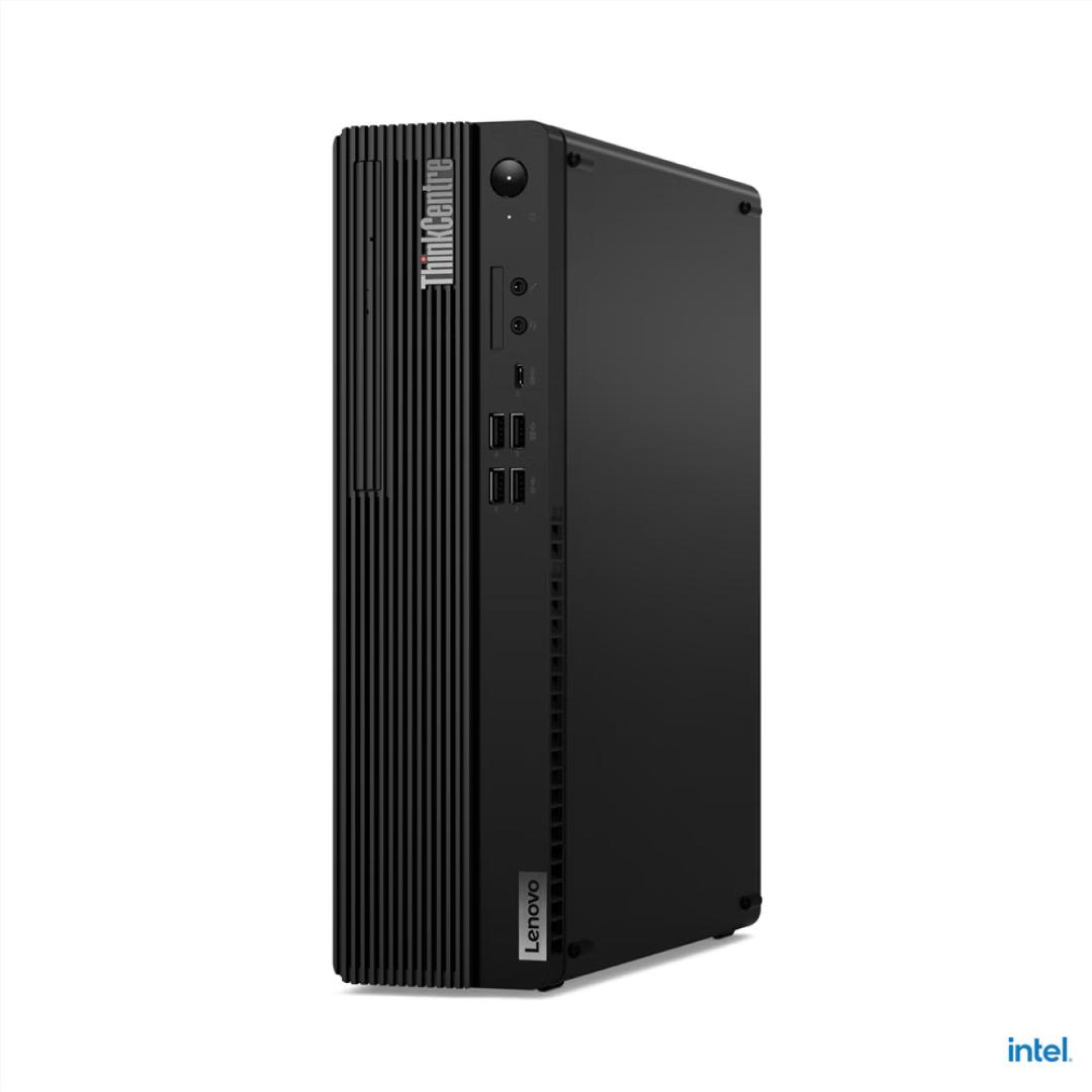

Lenovo ThinkCenter M70s Ge4 SFF - Intel Core i5-13400 - 12DT0035GR

Categorie:

COMPUTERS Desktops

Brand:

Intel Core i5
8GB
512GB

Lenovo ThinkCenter M70s Ge4 SFF - Intel Core i5-13400 - 12DT0035GR

SKU
12DT0035GR

Product Information




Processor
Intel® Core i5-13400, 10C (6P + 4E) / 16T, P-core 2.5 / 4.6GHz, E-core 1.8 / 3.3GHz, 20MB
Graphics
Integrated Intel® UHD Graphics 730
Chipset
Intel® Q670 Chipset
Memory
1x 8GB UDIMM DDR4-3200
Memory Slots
Four DDR4 DIMM slots, dual-channel capable
Max Memory
Up to 128GB DDR4-3200
Storage
512GB SSD M.2 2280 PCIe® 4.0x4 Value NVMe® Opal 2.0
Storage Support
Up to three drives, 1x 2.5"/3.5" HDD + 1x 2.5" HDD + 1x M.2 SSD • 2.5" HDD up to 1TB each • 3.5" HDD up to 2TB • M.2 SSD up to 2TB
Card Reader
None
Optical
None
Audio Chip
High Definition (HD) Audio, Realtek® ALC897Q-CG codec
Speakers
1Wx1
Power Supply
260W 90%
Keyboard
USB Traditional Keyboard, Black, Arabic
Mouse
USB Calliope Mouse, Black
Optional Bay
None
Expansion Slots
  • One PCIe® 4.0 x16, low-profile, length ? 155mm, height ? 70mm
  • Two PCIe® 3.0 x1, low-profile, length ? 155mm, height ? 70mm
  • Two M.2 slots (one for WLAN, one for SSD)
Case Color
Black
Stand
None
Dust Filter
None
Form Factor
SFF (8.2L)
Dimensions (WxDxH)
92.5 x 297.7 x 339.5 mm (3.6 x 11.7 x 13.4 inches)
Weight
Around 5.3 kg (11.7 lbs)
Ethernet
Integrated 100/1000M
WLAN + Bluetooth
None

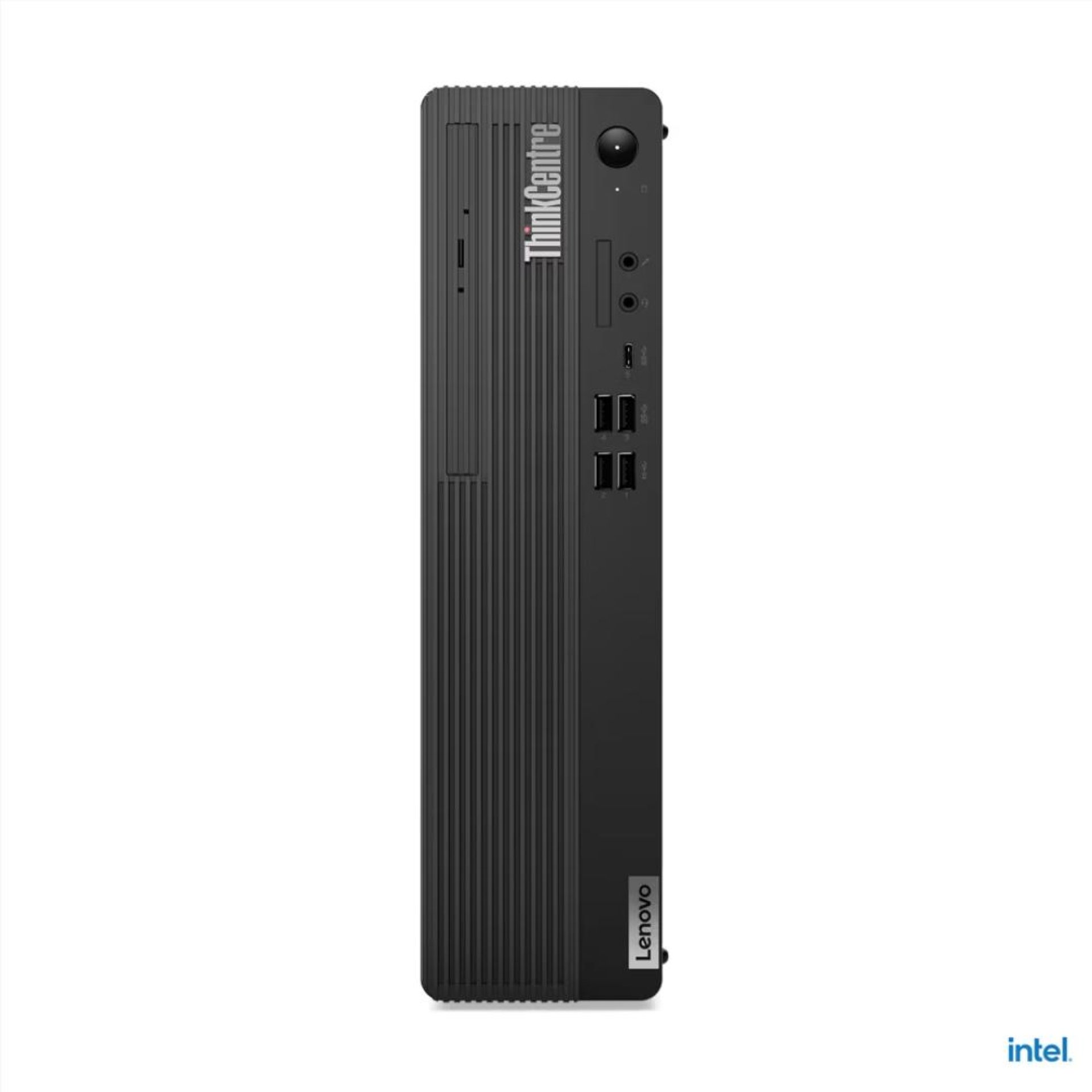

Front Ports
  • 1x USB-C® 3.2 Gen 1 (15W charging)
  • 2x USB 3.2 Gen 1
  • 2x USB 3.2 Gen 2
  • 1x headphone / microphone combo jack (3.5mm)
  • 1x microphone (3.5mm)

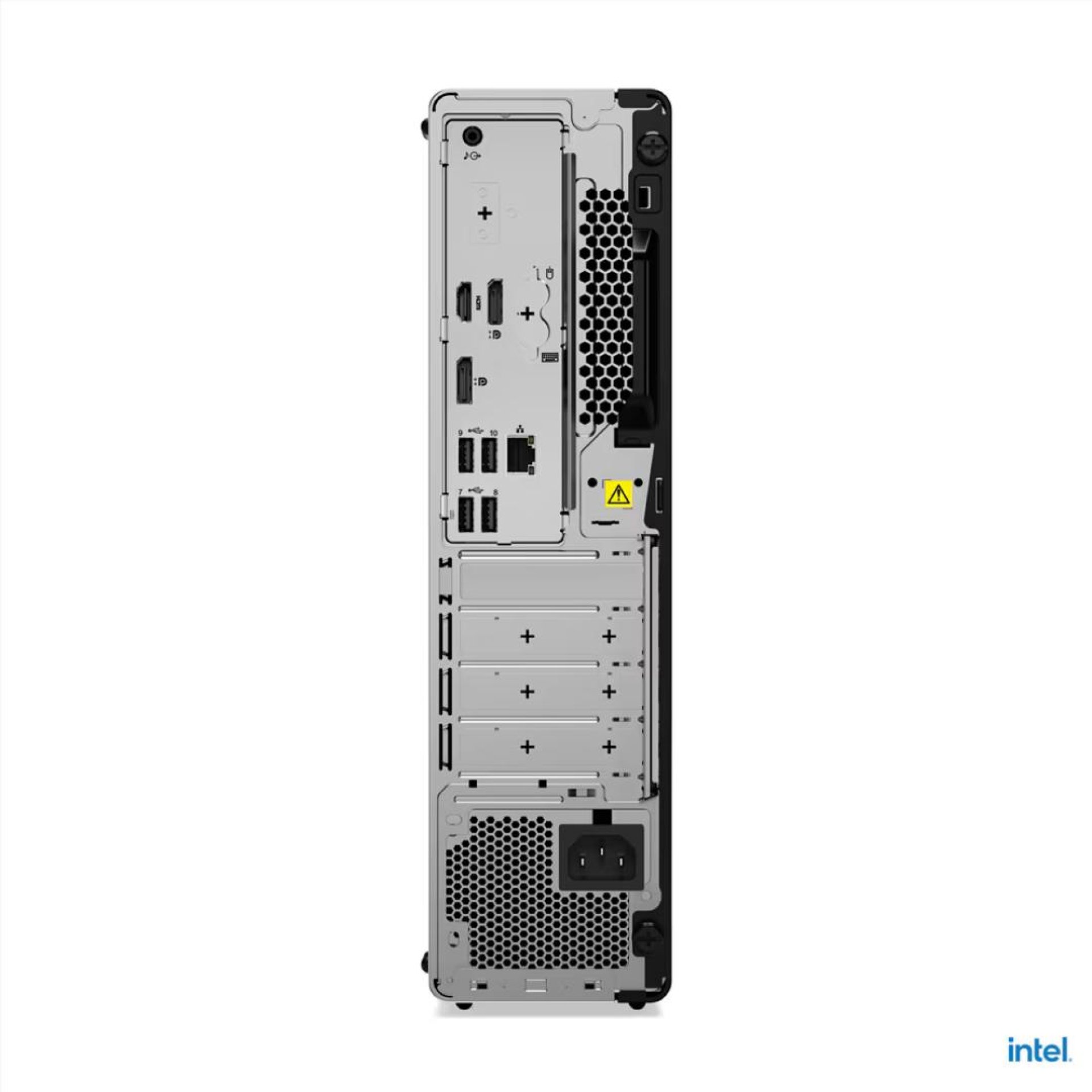

Rear Ports
  • 4x USB 2.0
  • 1x HDMI® 2.1 TMDS
  • 2x DisplayPort 1.4a (HBR2, DSC)
  • 1x Ethernet (RJ-45)
  • 1x line-out (3.5mm)
Optional Rear Ports (configured)
None
Security Chip
Discrete TPM 2.0, TCG certified
Fingerprint Reader
No fingerprint reader
Physical Locks
  • Kensington® Security Slot, 3 x 7 mm
  • Padlock Loop
Smart Cable Clip
None
Chassis E-Lock
None
Chassis Intrusion Switch
None
System Management
Non-vPro®
Base Warranty
1-year, Courier or Carry-in
Included Upgrade
None
Green Certifications
  • ErP Lot 3
  • RoHS compliant
  • TCO Certified 9.0
Mil-Spec Test
MIL-STD-810H military test passed (Low Pressure [Altitude], High Temperature, Low Temperature, Temperature Shock, Humidity, Sand and Dust, Vibration, Shock, Fungus, Solar Radiation, Contamination by Fluids, Salt Fog)
Operating System
None
Bundled Software
None
Bundled Accessories
None
