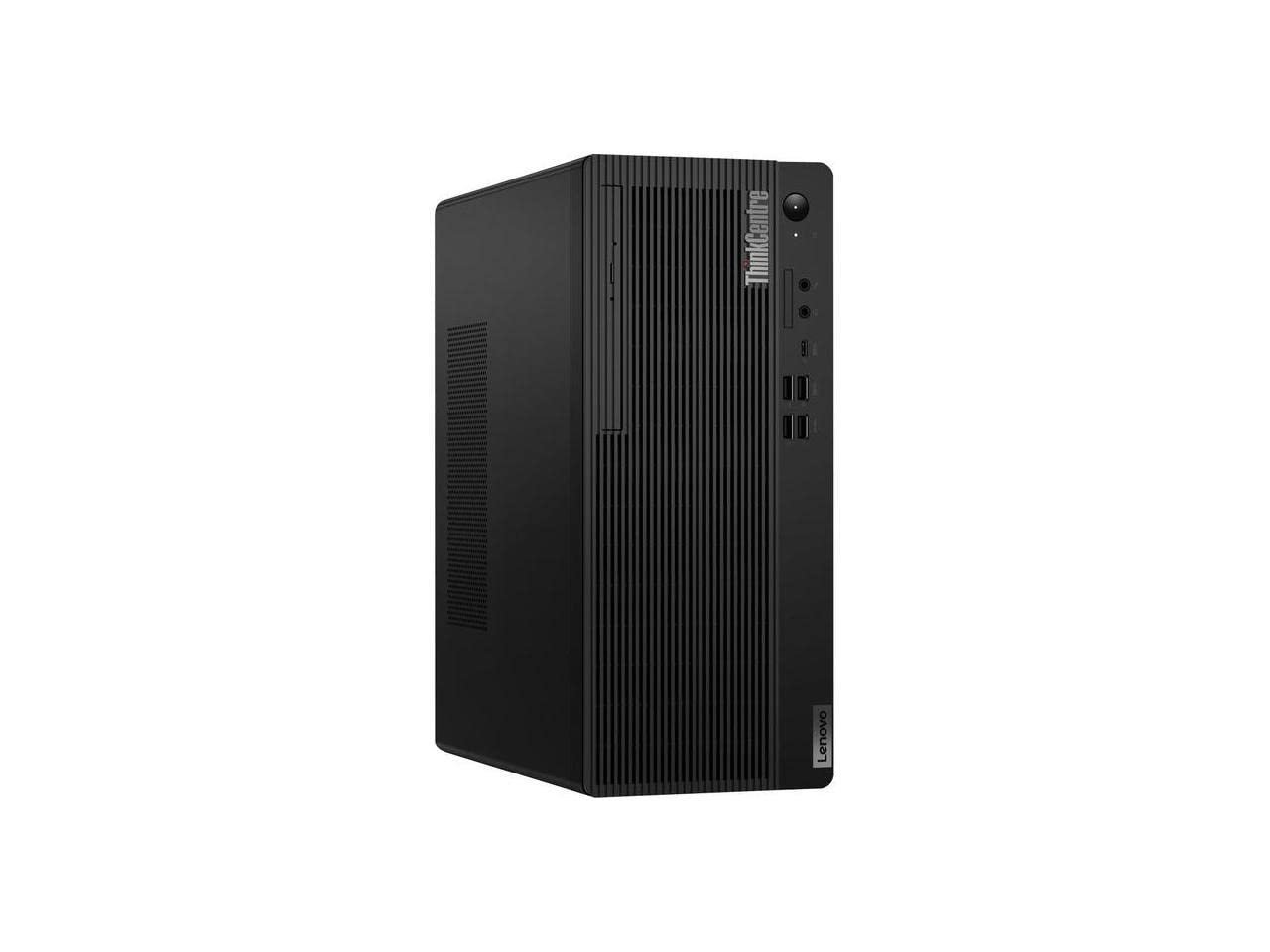

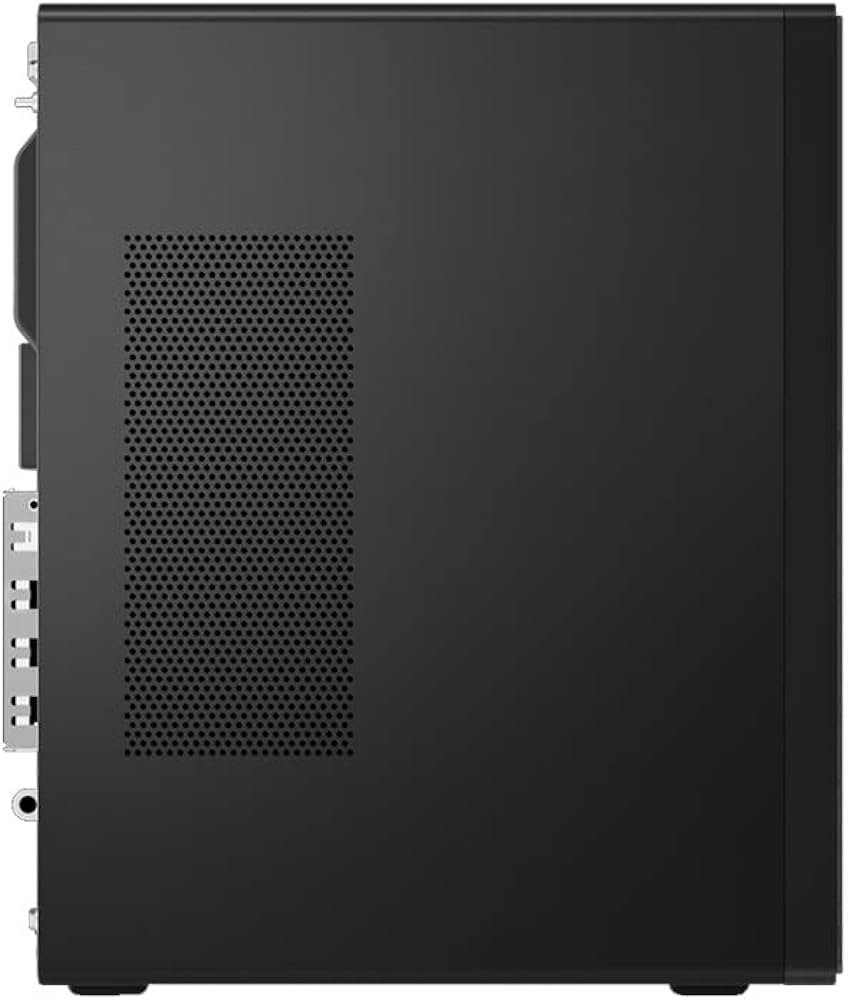

Lenovo ThinkCenter M70t Gen4 TWR - Intel Core i7-13700 - 12DR0022GR
Categorie:
COMPUTERS DesktopsBrand:
Intel Core i7
8GB
512GB
Lenovo ThinkCenter M70t Gen4 TWR - Intel Core i7-13700 - 12DR0022GR
Stock
0
Product Information
| Processor | Intel Core i7-13700, 16C (8P + 8E) / 24T, Max Turbo up to 5.2GHz, P-core 2.1 / 5.1GHz, E-core 1.5 / 4.1GHz, 30MB |
| Graphics | Integrated Intel UHD Graphics 770 |
| Chipset | Intel Q670 Chipset |
| Memory | 1x 8GB UDIMM DDR4-3200 |
| Memory Slots | Four DDR4 DIMM slots, dual-channel capable |
| Max Memory | Up to 128GB DDR4-3200 |
| Storage | 512GB SSD M.2 2280 PCIe 4.0x4 Value NVMe Opal 2.0 |
| Storage Support | Up to three drives, 1x 2.5"/3.5" HDD + 1x 2.5" HDD + 1x M.2 SSD • 2.5" HDD up to 1TB each • 3.5" HDD up to 2TB • M.2 SSD up to 2TB |
| Card Reader | None |
| Optical | None |
| Audio Chip | High Definition (HD) Audio, Realtek ALC897Q-CG codec |
| Speakers | 2Wx1 |
| Power Supply | 260W 90% |
| Keyboard | USB Traditional Keyboard, Black, Arabic |
| Mouse | USB Calliope Mouse, Black |
| Optional Bay | None |
| Expansion Slots | One PCIe 4.0 x16, full-height, length 209mm, height 117.5mmTwo PCIe 3.0 x1, full-height, (length 185mm, height 100mm) or (length 118mm, height 110mm)Two M.2 slots (one for WLAN, one for SSD) |
| Case Color | Black |
| Dust Filter | None |
| Form Factor | Tower (13.6L) |
| Dimensions (WxDxH) | 145 x 296 x 346 mm (5.7 x 11.7 x 13.6 inches) |
| Weight | Around 5.9 kg (13.0 lbs) |
| CONNECTIVITY | |
| Ethernet | Integrated 100/1000M |
| WLAN + Bluetooth | Intel Wi-Fi 6 AX201, 11ax 2x2 + BT5.1 |
| Front Ports | 1x USB-C 3.2 Gen 1 (15W charging)2x USB 3.2 Gen 12x USB 3.2 Gen 21x headphone / microphone combo jack (3.5mm)1x microphone (3.5mm) |
| Rear Ports | 4x USB 2.01x HDMI 2.1 TMDS2x DisplayPort 1.4a (HBR2, DSC)1x Ethernet (RJ-45)1x line-out (3.5mm) |
| Optional Rear Ports (configured) | None |
| Monitor Cable | None |
| SECURITY & PRIVACY | |
| Security Chip | Discrete TPM 2.0, TCG certified |
| Fingerprint Reader | No fingerprint reader |
| Physical Locks | Kensington Security Slot, 3 x 7 mm Padlock Loop |
| Smart Cable Clip | None |
| Chassis E-Lock | None |
| Chassis Intrusion Switch | None |
