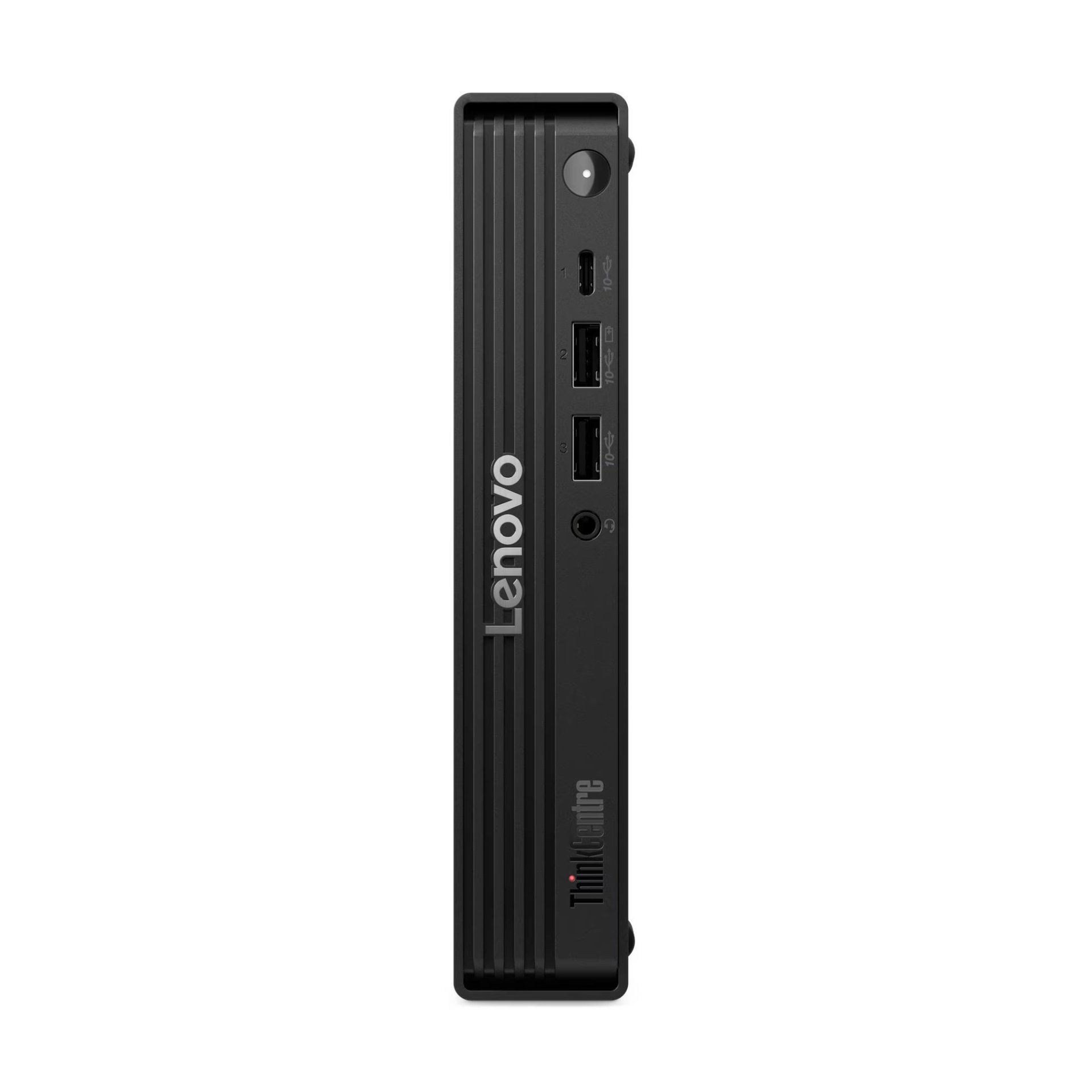

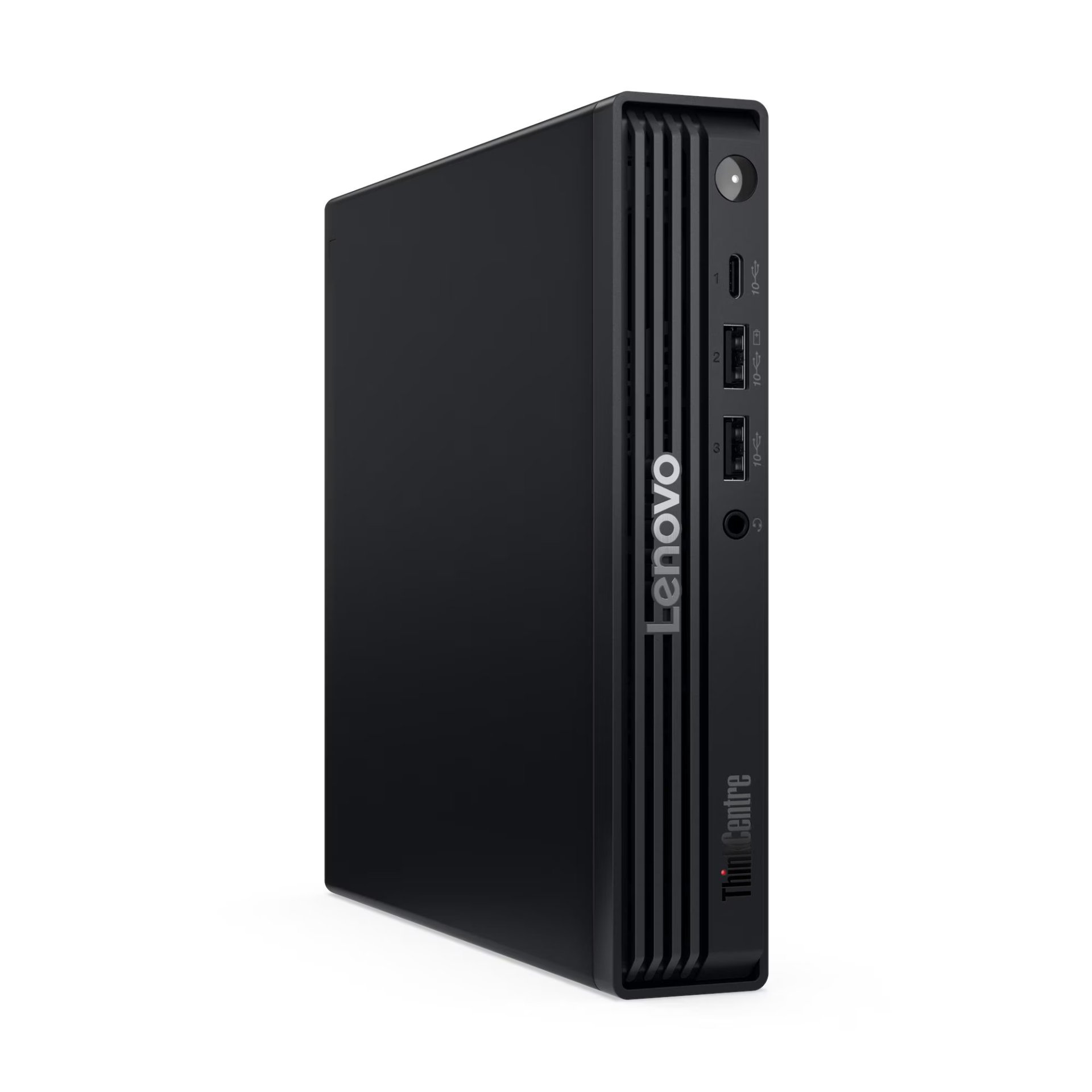

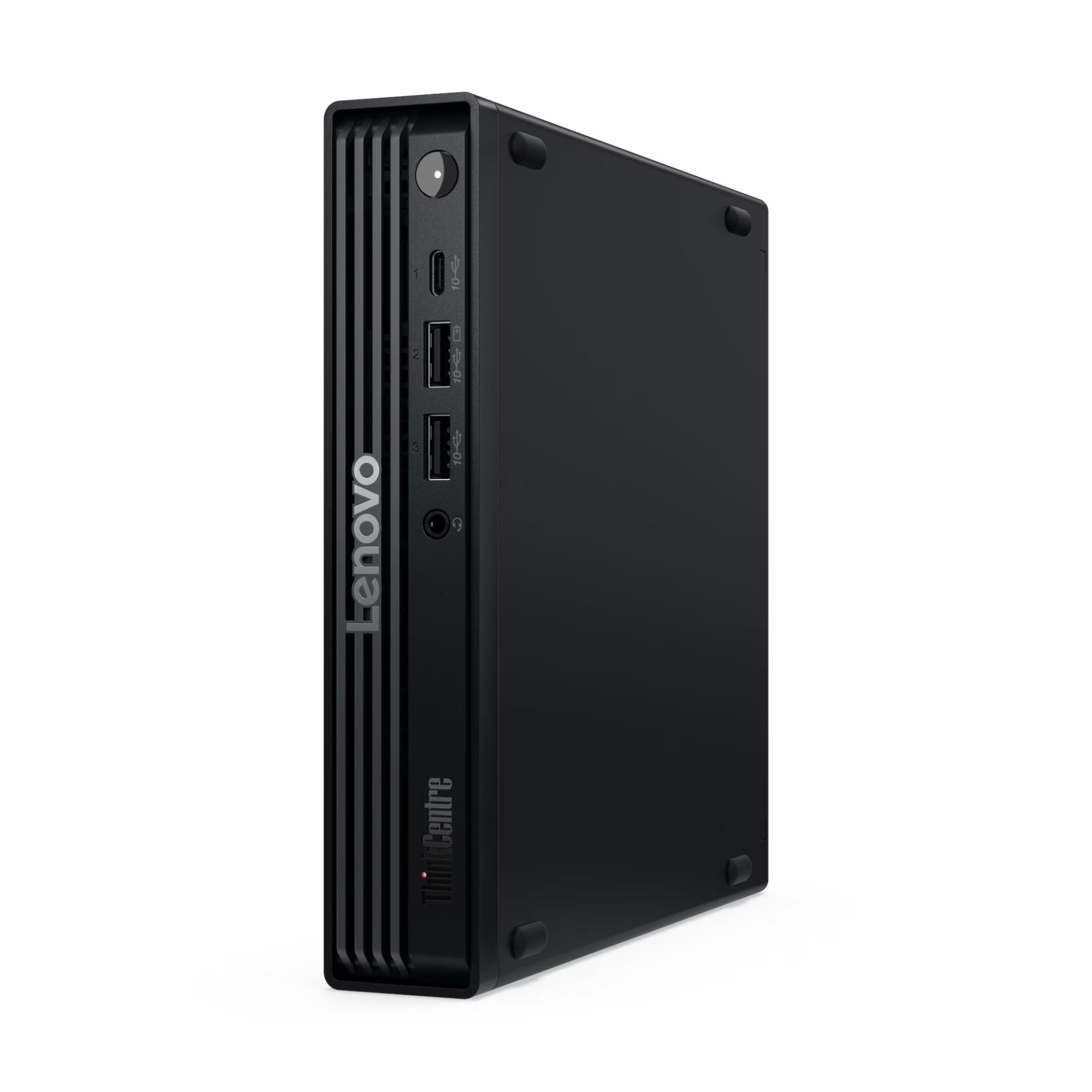

Lenovo ThinkCentre M70q Gen 6 - Intel Core Ultra 5 225T - 8GB - 512GB SSD - NO OS - 13A4002WGR
Categorie:
DesktopsBrand:
LenovoThe Lenovo ThinkCentre M70q Gen 6 (13A4002WGR) is a compact, ultra‑small “Tiny” desktop powered by an Intel Core Ultra 5 225T processor, paired with 8 GB DDR5 RAM and a 512 GB NVMe SSD. With no operating system installed, it’s ideal for businesses or enthusiasts who want a powerful, space-saving PC ready to configure to their needs.
Product Information
Processor
Intel® Core Ultra 5 225T, 10C (6P + 4E) / 10T, Max Turbo up to 4.9GHz, 20MB
AI PC Category
AI PC
NPU
Integrated Intel® AI Boost, up to 13 TOPS
Graphics
Integrated Intel® Graphics
Chipset
Intel® Q870 Chipset
Memory
1x 8GB SO-DIMM DDR5-5600
Memory Slots
Two DDR5 SO-DIMM slots, dual-channel capable
Max Memory
Up to 64GB (2x 32GB DDR5 SO-DIMM)
Storage
512GB SSD M.2 2280 PCIe® 4.0x4 NVMe® Opal
Max Storage Support
Up to two drives, 2x M.2 2280 SSD • M.2 2280 SSD up to 2TB
RAID Preset
None
Card Reader
No card reader
Optical
None
Audio Chip
High Definition (HD) Audio, Realtek® ALC233VB or Conexant CX11771 codec
24-bit DAC supports 44.1K/48K/96K sample rate, 2 channel DAC supports 24-bit PCM format
16-bit ADC supports 44.1K/48K/96K sample rate, 2 stereo ADC supports 16-bit PCM format
Speakers
2Wx1
Power Supply
90W 89% Adapter
Keyboard
USB Traditional Keyboard, Black, Arabic
Mouse
USB Calliope Mouse, Black
Expansion Slots
Three M.2 slots (one for WLAN, two for SSD)
Case Color
Black
Stand
None
Adapter Cage
None
Toolless Chassis Screw
Toolless Chassis Screw
Dust Filter
None
Mounting
VESA Mount
IO Box
None
Pen
Pen Not Supported
Form Factor
Tiny (1L)
Dimensions (WxDxH)
179 x 182.9 x 36.5 mm (7.05 x 7.2 x 1.44 inches)
Weight
Around 1.18 kg (2.6 lbs)
WLAN + Bluetooth
Intel® Wi-Fi® 6E AX211, 802.11ax 2x2 + BT5.3, vPro®
WWAN
Non-WWAN
Ethernet
Integrated 100/1000M
Front Ports
1x USB-C® (USB 10Gbps / USB 3.2 Gen 2), data transfer only
2x USB-A (USB 10Gbps / USB 3.2 Gen 2), one supports Always On and 5V@2.1A charging
1x headphone / microphone combo jack (3.5mm)

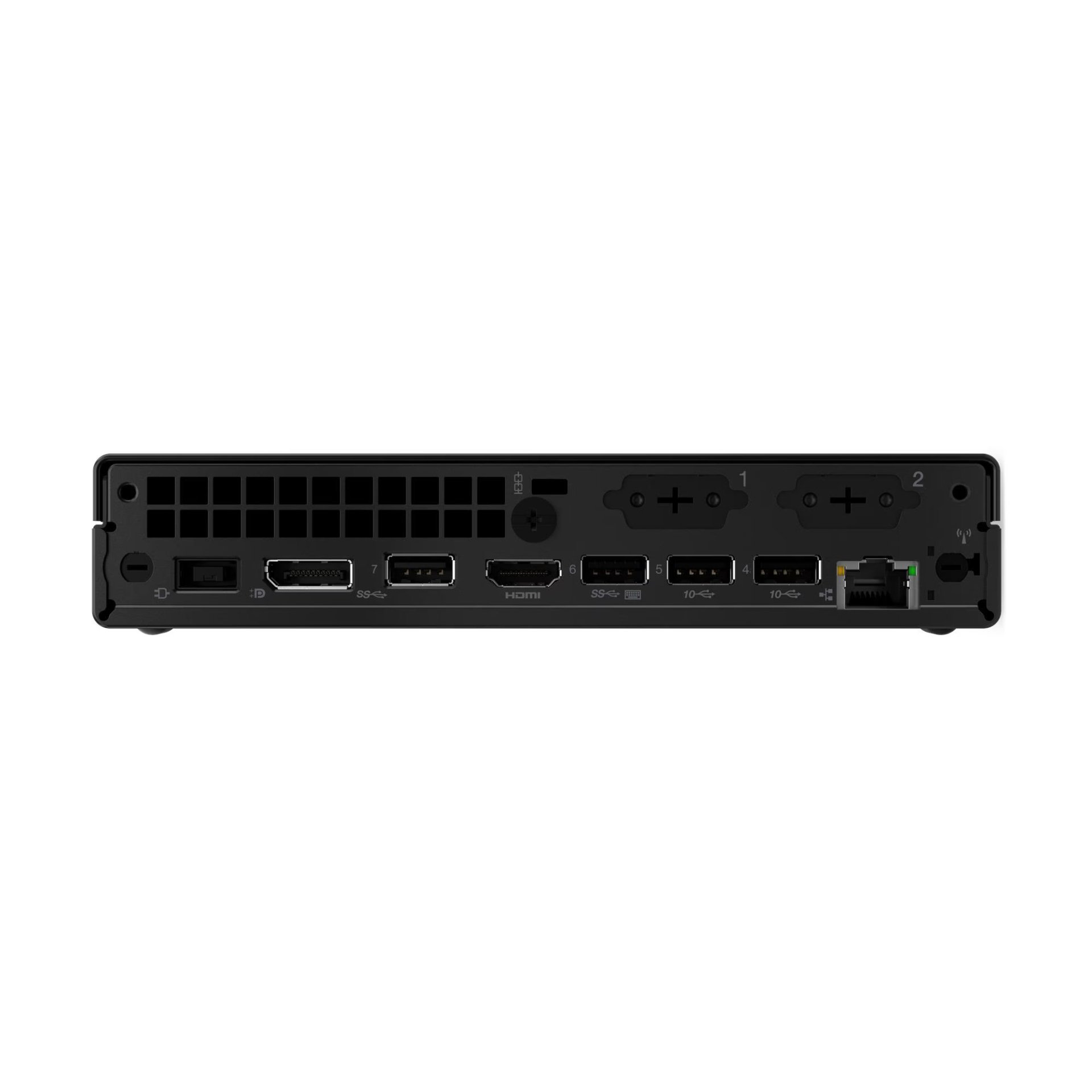

Rear Ports
2x USB-A (USB 10Gbps / USB 3.2 Gen 2)
2x USB-A (USB 5Gbps / USB 3.2 Gen 1), one supports Smart Power On
1x HDMI® 2.1 TMDS
1x DisplayPort™ 1.4a (HBR2)
1x Ethernet (GbE RJ-45)
Optional Rear Ports (configured)
None
Security Chip
Discrete TPM 2.0, TCG certified, FIPS 140-2 certified
Fingerprint Reader
No fingerprint reader
Physical Locks
Kensington® Security Slot™, 3 x 7 mm
Kensington Cable Lock
None
Chassis Intrusion Switch
Chassis Intrusion Switch
System Management
Non-vPro®
Base Warranty
1-year, Courier or Carry-in
Included Upgrade
None
Green Certifications
RoHS compliant
TCO Certified, generation 10
Other Certifications
-
Mil-Spec Test
MIL-STD-810H military test passed (Low Pressure [Altitude], High Temperature, Low Temperature, Temperature Shock, Humidity, Sand and Dust, Vibration, Shock, Solar Radiation, Contamination by Fluids, Salt Fog)
Operating System
None
Bundled Software
None
Bundled Accessories
None
Model
13A4002WGR
