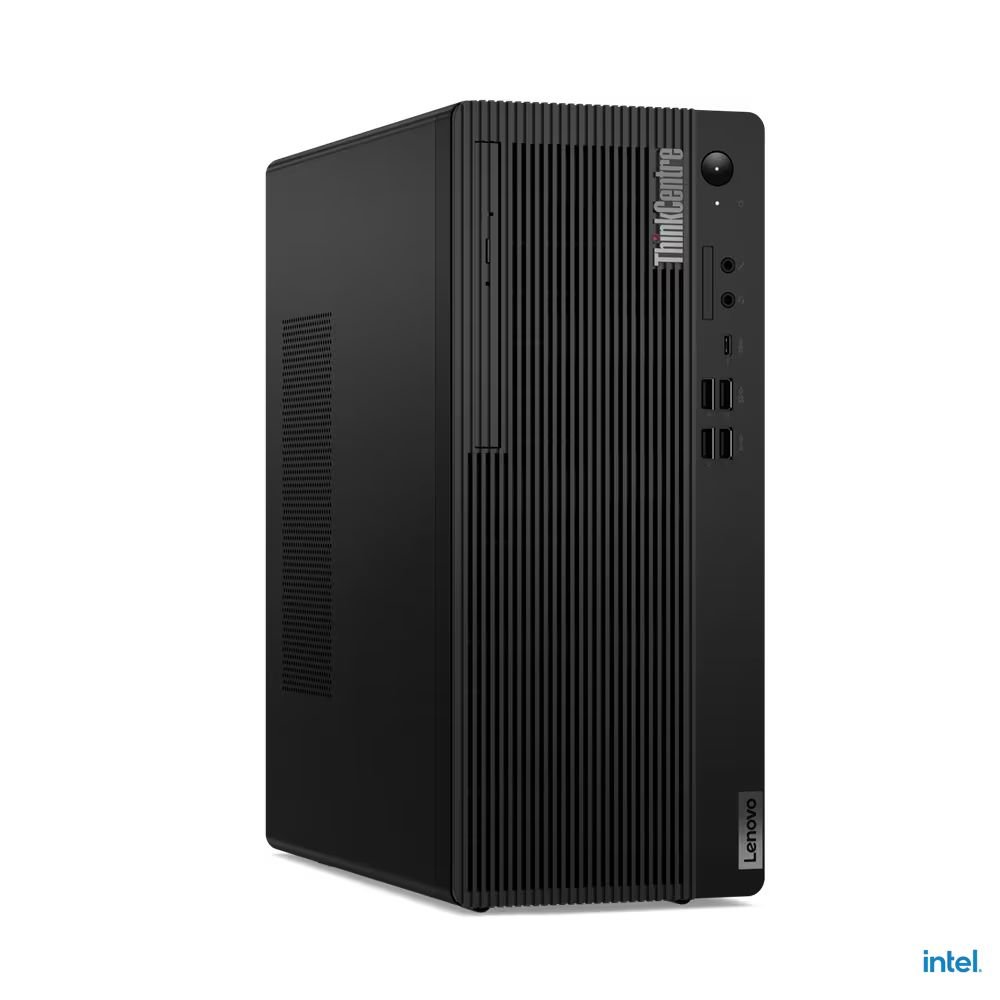

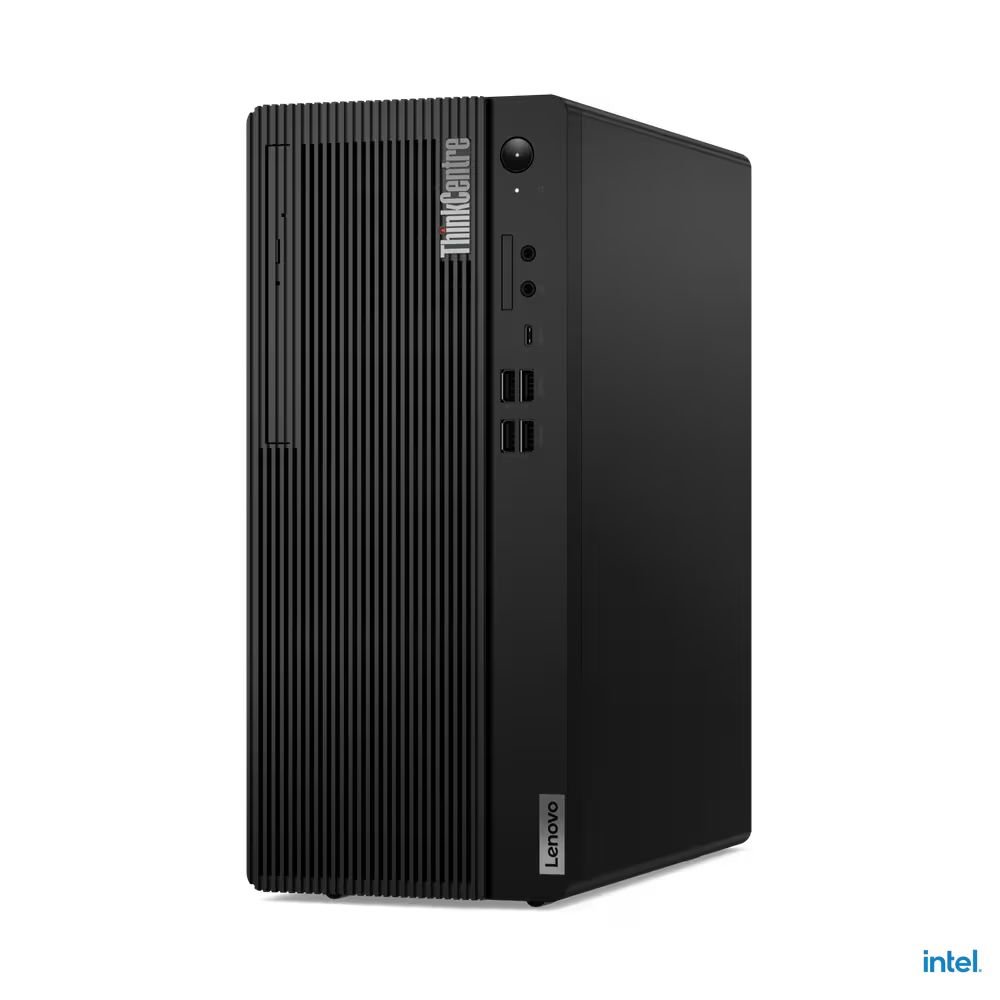

Lenovo ThinkCentre M70t Gen 3 - Intel Core i7-12700 - 11TA0024GR
Categorie:
COMPUTERS DesktopsBrand:
Lenovo ThinkCentre M70t Gen 3 - Intel Core i7-12700 - 11TA0024GR
Product Information
| Processor | Intel® Core™ i7-12700, 12C (8P + 4E) / 20T, Max Turbo up to 4.9GHz, P-core 2.1 / 4.8GHz, E-core 1.6 / 3.6GHz, 25MB |
| Graphics | Integrated Intel® UHD Graphics 770 |
| Chipset | Intel® Q670 Chipset |
| Memory | 1x 8GB UDIMM DDR4-3200 |
| Memory Slots | Four DDR4 DIMM slots, dual-channel capable |
| Max Memory | Up to 128GB DDR4-3200 |
| Storage | 512GB SSD M.2 2280 PCIe® 4.0x4 Value NVMe® Opal |
| Storage Support | Up to three drives, 1x 2.5"/3.5" HDD + 1x 2.5" HDD + 1x M.2 SSD • 2.5" HDD up to 1TB each • 3.5" HDD up to 2TB • M.2 SSD up to 2TB |
| Card Reader | 3-in-1 Card Reader |
| Optical | DVD±RW |
| Audio Chip | High Definition (HD) Audio, Realtek® ALC897Q-CG codec |
| Speakers | 2Wx1 |
| Power Supply | 260W 90% |
| Keyboard | USB Traditional Keyboard, Black, Arabic |
| Mouse | USB Calliope Mouse, Black |
| Optional Bay | None |
| Expansion Slots | One PCIe® 4.0 x16, full-height, length ? 209mm, height ? 117.5mm |
| Two PCIe® 3.0 x1, full-height, (length ? 185mm, height ? 100mm) or (length ? 118mm, height ? 110mm) | |
| Two M.2 slots (one for WLAN, one for SSD) | |
| Case Color | Black |
| Stand | No stand |
| Dust Filter | None |
| Form Factor | Tower (13.6L) |
| Dimensions (WxDxH) | 145 x 296 x 346 mm (5.7 x 11.7 x 13.6 inches) |
| Weight | Around 5.9 kg (13.0 lbs) |
| Ethernet | Integrated 100/1000M |
| WLAN + Bluetooth | None |
| Front Ports | 1x USB-C® 3.2 Gen 1 (15W charging) |
| 2x USB 3.2 Gen 1 | |
| 2x USB 3.2 Gen 2 | |
| 1x headphone / microphone combo jack (3.5mm) | |
| 1x microphone (3.5mm) | |
| Optional Front Ports (configured) | 1x card reader |

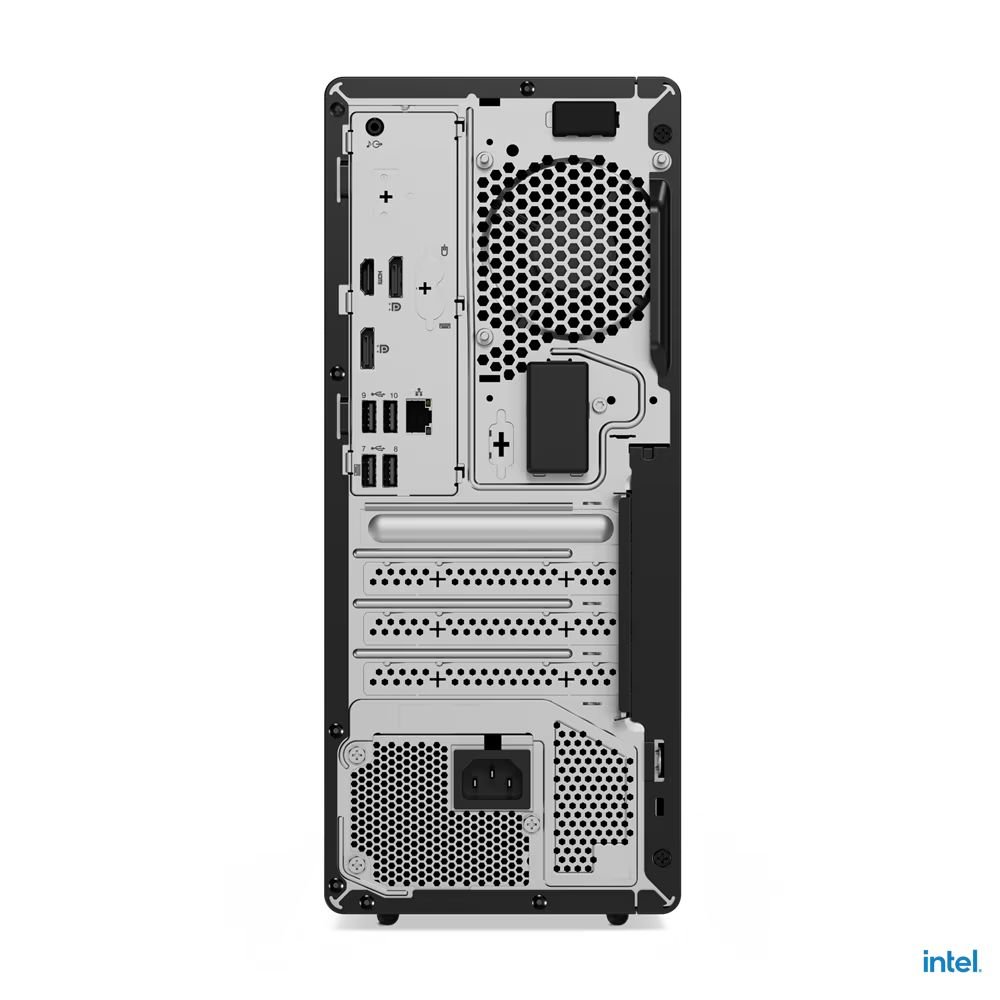

| Rear Ports | 4x USB 2.0 |
| 1x HDMI® 2.1 TMDS | |
| 2x DisplayPort™ 1.4 | |
| 1x Ethernet (RJ-45) | |
| 1x line-out (3.5mm) | |
| Optional Rear Ports (configured) | 1x Serial |
| Monitor Cable | None |
| Security Chip | Discrete TPM 2.0, TCG certified |
| Fingerprint Reader | No fingerprint reader |
| Physical Locks | Kensington® Security Slot™, 3 x 7 mm |
| Padlock Loop | |
| Smart Cable Clip | None |
| Chassis E-Lock | None |
| Chassis Intrusion Switch | None |
| System Management | Non-vPro® |
