Processor

Intel® Core™ i7-14700, 20C (8P + 12E) / 28T, Max Turbo up to 5.4GHz, P-core 2.1 / 5.3GHz, E-core 1.5 / 4.2GHz, 33MB

Graphics

Integrated Intel® UHD Graphics 770

Chipset

Intel® Q670 Chipset

Memory

1x 8GB UDIMM DDR5-5600

Memory Slots

Two DDR5 UDIMM slots, dual-channel capable

Max Memory

Up to 64GB DDR5

Storage

512GB SSD M.2 2280 PCIe® 4.0x4 NVMe® Opal 2.0

Storage Support

Up to three drives, 1x 3.5" HDD + 1x 2.5" HDD + 1x M.2 SSD • 3.5" HDD up to 2TB • 2.5" HDD bay is only for customer self upgrade • M.2 SSD up to 2TB each

Card Reader

None

Optical

None

Audio Chip

High Definition (HD) Audio, Realtek® ALC623-CG codec

Speakers

2Wx1

Power Supply

260W 90%

Keyboard

USB Traditional Keyboard, Black, Arabic

Mouse

USB Calliope Mouse, Black

Optional Bay

None

Expansion Slots

• One PCIe® 3.0 x16, full-height, length ≤ 222.7mm, height ≤ 111.2mm
• One PCIe® 3.0 x1, full-height, (length ≤ 185mm, height ≤ 100mm) or (length ≤ 118mm, height ≤ 110mm)
• Two M.2 slots (one for WLAN, one for SSD)

Case Color

Black

Dust Filter

None

Pen

Pen Not Supported

Form Factor

Tower (13.6L)

Dimensions (WxDxH)

145 x 296 x 346 mm (5.7 x 11.7 x 13.6 inches)

Weight Around

5.9 kg (13.0 lbs)

Ethernet

Integrated 100/1000M

WLAN + Bluetooth

Intel® Wi-Fi® 6E AX211, 802.11ax 2x2 + BT5.3, vPro®

WWAN

Non-WWAN

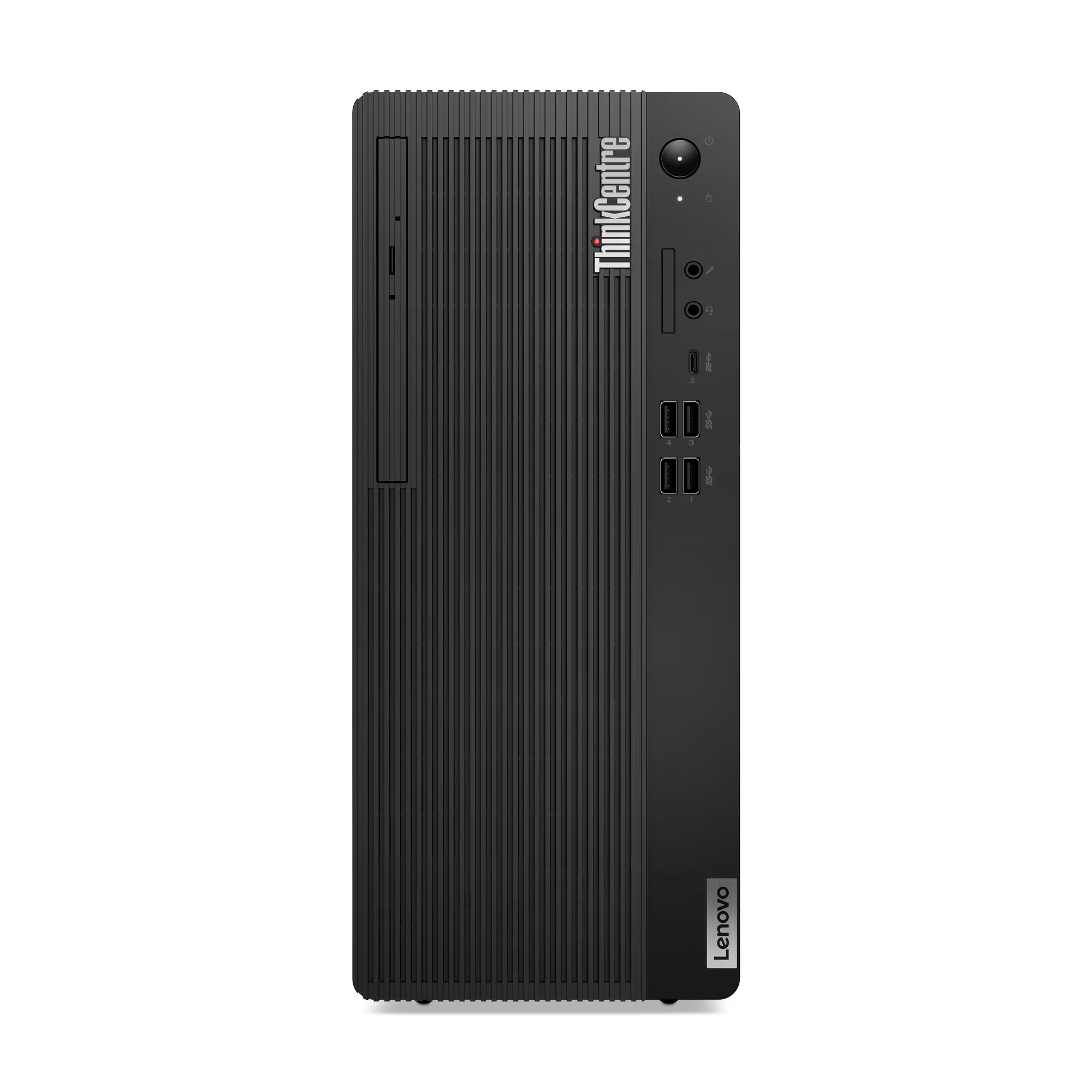

Front Ports

• 1x USB-C® (USB 5Gbps / USB 3.2 Gen 1), with 15W charging
• 4x USB-A (USB 5Gbps / USB 3.2 Gen 1)
• 1x headphone / microphone combo jack (3.5mm)
• 1x microphone (3.5mm)

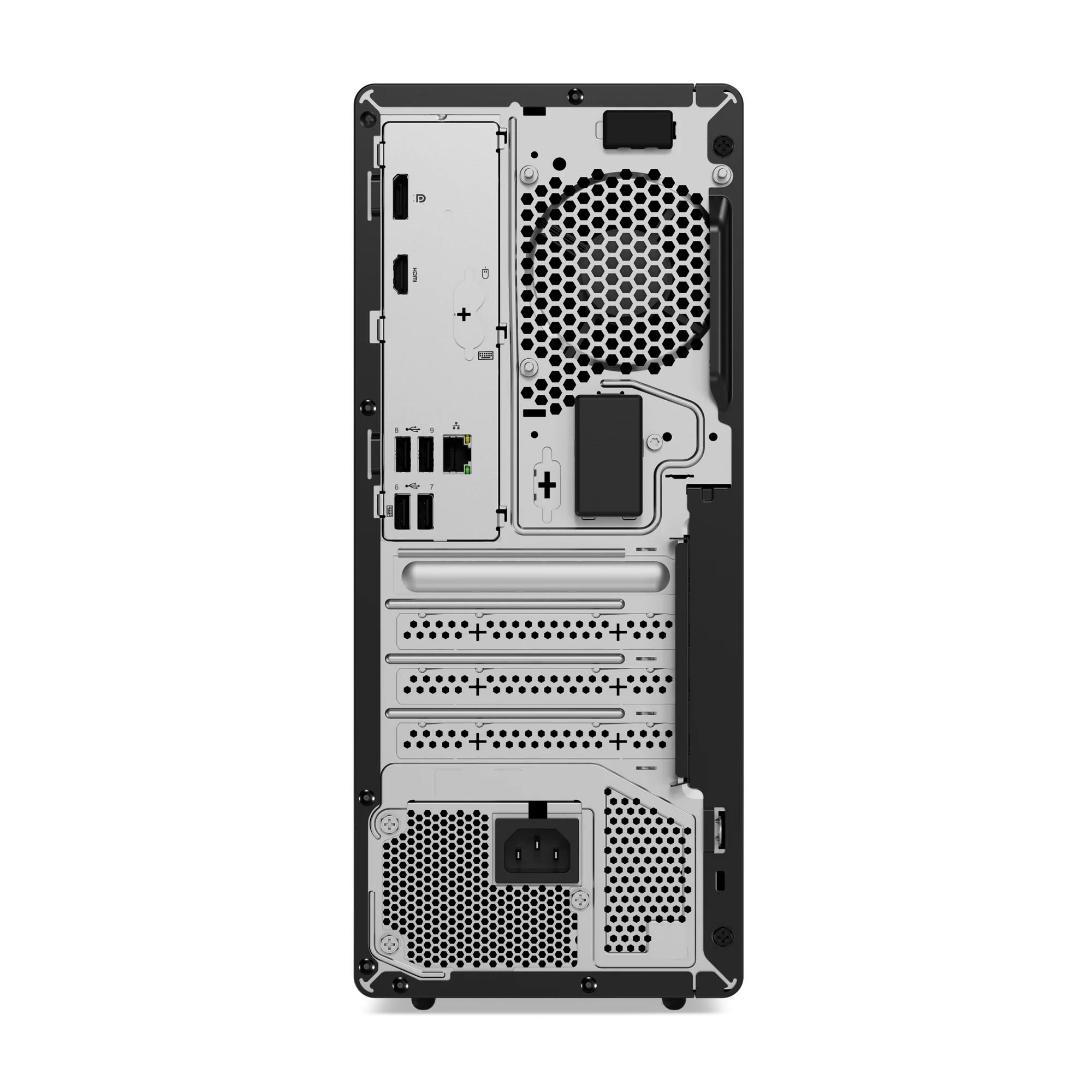

Rear Ports

• 4x USB-A (Hi-Speed USB / USB 2.0)
• 1x HDMI® 2.1 TMDS
• 1x DisplayPort™ 1.4a (HBR2, DSC)
• 1x Ethernet (RJ-45)

Optional Rear Ports (configured)

None

Security Chip

Discrete TPM 2.0, TCG certified, FIPS 140-2 certified

Fingerprint Reader

No fingerprint reader

Physical Locks

• Smart Cable Clip
• Kensington® Security Slot™, 3 x 7 mm
• Padlock Loop

Smart Cable Clip

Smart Cable Clip

Chassis E-Lock

None

Chassis Intrusion Switch

None
