Processor

Intel® Core™ i7-14700T, 20C (8P + 12E) / 28T, Max Turbo up to 5.2GHz, P-core 1.3 / 5.0GHz, E-core 0.9 / 3.7GHz, 33MB

Graphics

Integrated Intel® UHD Graphics 770

Chipset

Intel® Q670 Chipset

Memory

1x 8GB SO-DIMM DDR5-5600

Memory Slots

Two DDR5 SO-DIMM slots, dual-channel capable

Max Memory

Up to 64GB (2x 32GB DDR5 SO-DIMM)

Storage

512GB SSD M.2 2280 PCIe® 4.0x4 NVMe® Opal 2.0

Storage Support

Up to two drives, 2x M.2 2280 SSD • M.2 2280 SSD up to 2TB

Card Reader

No card reader

Optical

None

Audio Chip

High Definition (HD) Audio, Realtek® ALC233 codec

Speakers

2Wx1

Power Supply

135W 90% Adapter

Keyboard

USB Traditional Keyboard, Black, Arabic

Mouse

USB Calliope Mouse, Black

Expansion Slots

• One PCIe® 4.0 x8, low-profile
• Two M.2 PCIe® Gen 4x4 slots (for SSD)
• One M.2 slot (for WLAN)

Case Color

Black

Stand

None

Adapter Cage

None

Toolless Chassis Screw

Toolless Chassis Screw

Dust Filter

None

Mounting

1x VESA Mount

IO Box

None

Pen

Pen Not Supported

Form Factor

Tiny (1L)

Dimensions (WxDxH)

179 x 182.9 x 36.5 mm with rubber feet (7.05 x 7.2 x 1.44 inches with rubber feet)

Weight

1.25 kg (2.76 lbs)

Ethernet

Integrated 100/1000M

WLAN + Bluetooth

Intel® Wi-Fi® 6E AX211, 802.11ax 2x2 + BT5.3, vPro®

WWAN

Non-WWAN

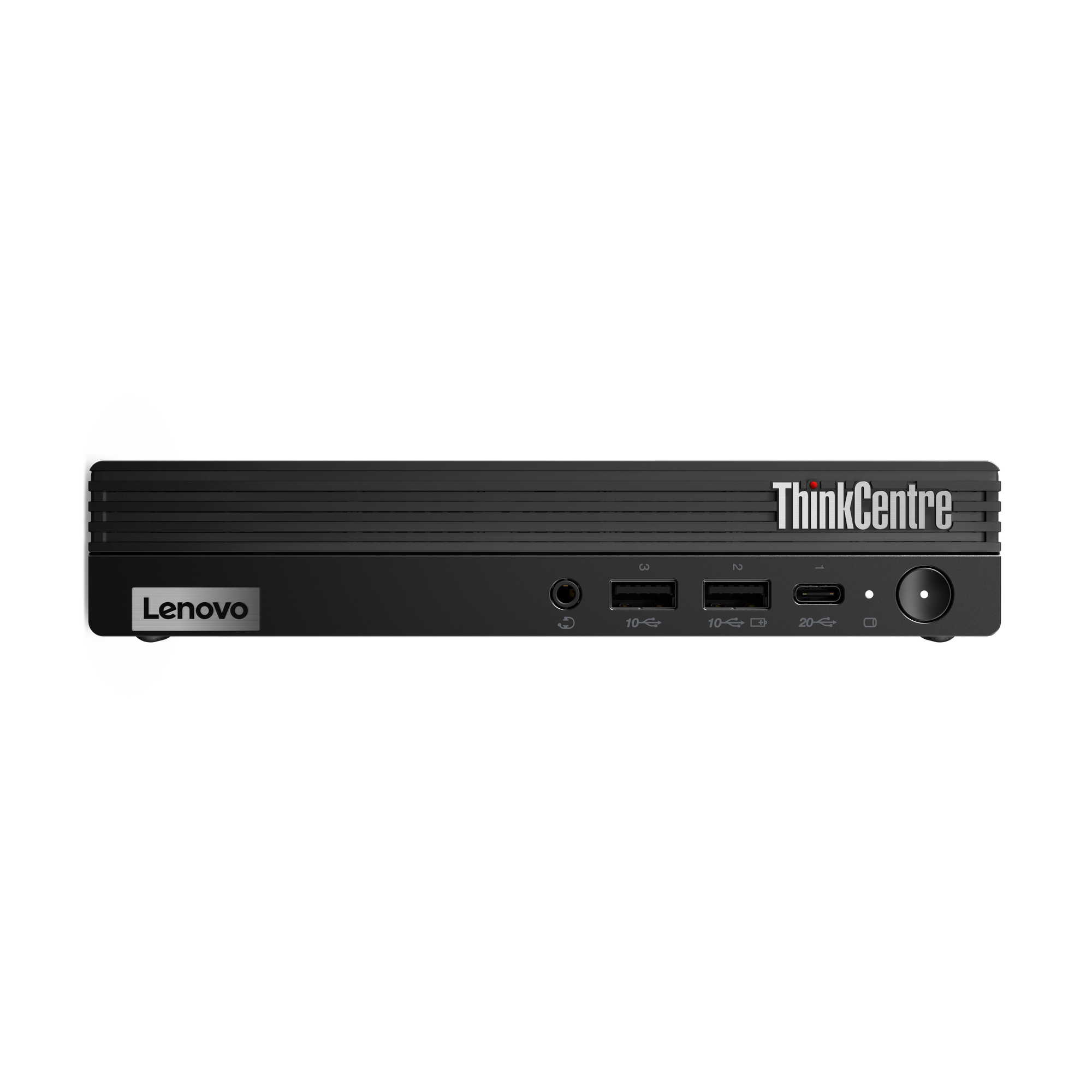

Front Ports

• 1x USB-C® (USB 20Gbps / USB 3.2 Gen 2x2), data transfer only
• 1x USB-A (USB 10Gbps / USB 3.2 Gen 2), with Always On and 5V@2.1A charging
• 1x USB-A (USB 10Gbps / USB 3.2 Gen 2)
• 1x headphone / microphone combo jack (3.5mm)

Optional Front Ports (configured)

None

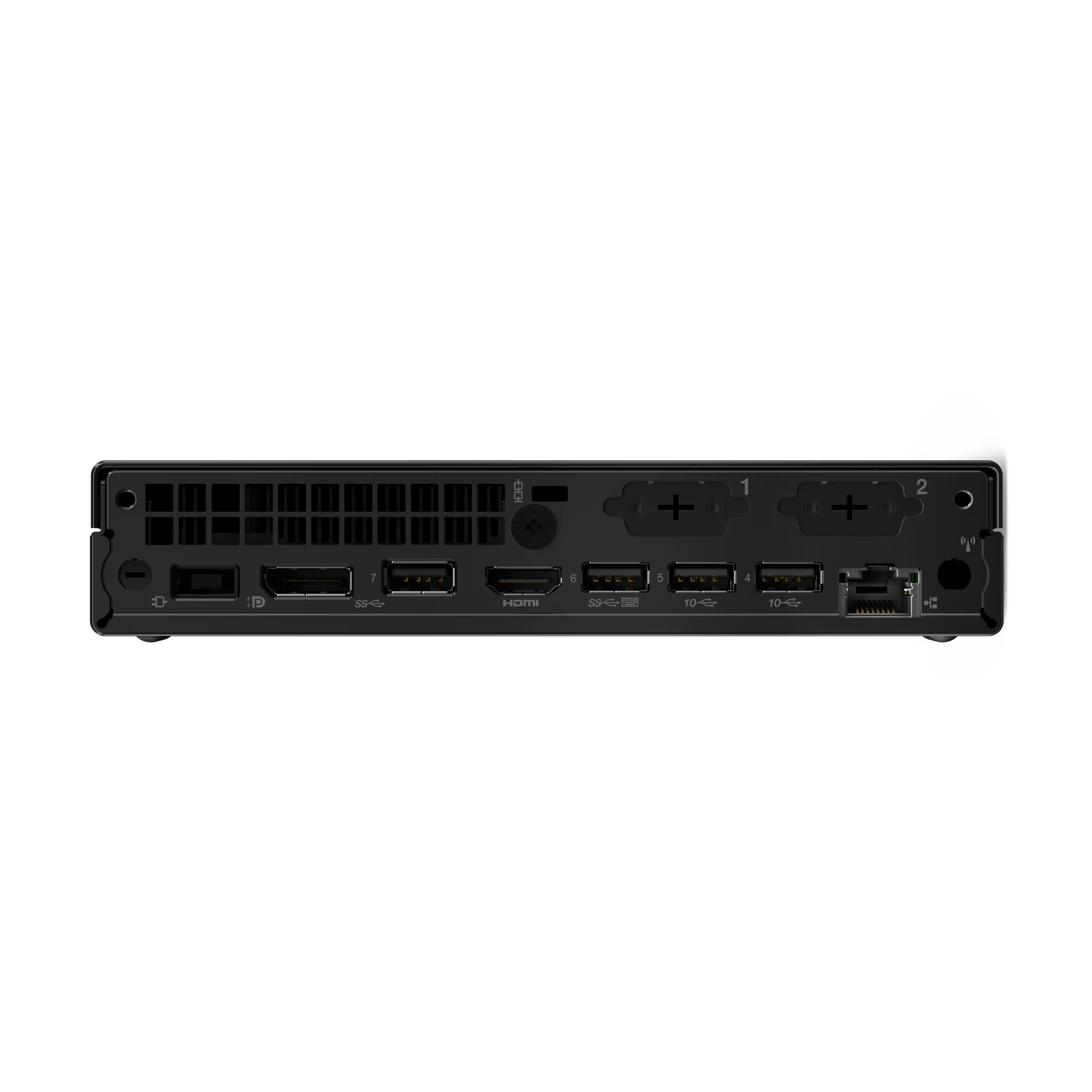

Rear Ports

• 1x USB-A (USB 5Gbps / USB 3.2 Gen 1)
• 1x USB-A (USB 5Gbps / USB 3.2 Gen 1), with Smart Power On
• 2x USB-A (USB 10Gbps / USB 3.2 Gen 2)
• 1x HDMI® 2.1 TMDS
• 1x DisplayPort™ 1.4a (HBR2, DSC)
• 1x Ethernet (GbE RJ-45)

Optional Rear Ports (configured)

None

Security Chip

Discrete TPM 2.0, TCG certified, FIPS 140-2 certified

Fingerprint Reader

No fingerprint reader

Physical Locks

Kensington® Security Slot™, 3 x 7 mm

Chassis Intrusion Switch

Chassis Intrusion Switch

System Management

Intel® vPro® Enterprise

Base Warranty

1-year, Onsite

Included Upgrade

3Y Onsite upgrade from 1Y Onsite

Green Certifications

• ENERGY STAR® 8.0
• EPEAT™ Gold Registered
• ErP Lot 3
• RoHS compliant
• TCO Certified 9.0

Mil-Spec Test

MIL-STD-810H military test passed (Low Pressure [Altitude], High Temperature, Low Temperature, Temperature Shock, Humidity, Sand and Dust, Vibration, Shock, Solar Radiation, Contamination by Fluids, Salt Fog)

Operating System

Windows® 11 Pro, Arabic / English

Bundled Software

None

Bundled Accessories

None
