Processor

Intel® Core™ i5-14500, 14C (6P + 8E) / 20T, P-core 2.6 / 5.0GHz, E-core 1.9 / 3.7GHz, 24MB

Graphics

Integrated Intel® UHD Graphics 770

Chipset

Intel® Q670 Chipset

Memory

1x 16GB UDIMM DDR5-4400

Memory Slots

Four DDR5 UDIMM slots, dual-channel capable

Max Memory

Up to 128GB DDR5

Storage

512GB SSD M.2 2280 PCIe® 4.0x4 NVMe® Opal 2.0

Storage Support

Up to four drives, 1x 3.5" HDD + 1x 2.5" HDD + 2x M.2 SSD • 3.5" HDD up to 2TB • 2.5" HDD bay is only for customer self upgrade • M.2 SSD up to 2TB each

Card Reader

3-in-1 Card Reader

Optical

DVD±RW

Audio Chip

High Definition (HD) Audio, Realtek® ALC897Q-CG codec

Speakers

1Wx1

Power Supply

260W 90%

Mouse

USB Calliope Mouse, Black

Optional Bay

None

Expansion Slots

• One PCIe® 4.0 x16 (x4 signal), low-profile, length ≤ 155mm, height ≤ 70mm
• One PCIe® 4.0 x16, low-profile, length ≤ 155mm, height ≤ 70mm
• One PCIe® 3.0 x1, low-profile, length ≤ 155mm, height ≤ 70mm
• Three M.2 slots (one for WLAN, two for SSD)

Case Color

Black

Stand

Vertical Stand

Dust Filter

None

Pen

Pen Not Supported

Form Factor

SFF (8.2L)

Dimensions (WxDxH)

92.5 x 297.7 x 339.5 mm (3.6 x 11.7 x 13.4 inches)

Weight

Around 5.3 kg (11.7 lbs)

Ethernet

Integrated 100/1000M

WLAN + Bluetooth

Intel® Wi-Fi® 6E AX211, 802.11ax 2x2 + BT5.3, vPro®

WWAN

Non-WWAN

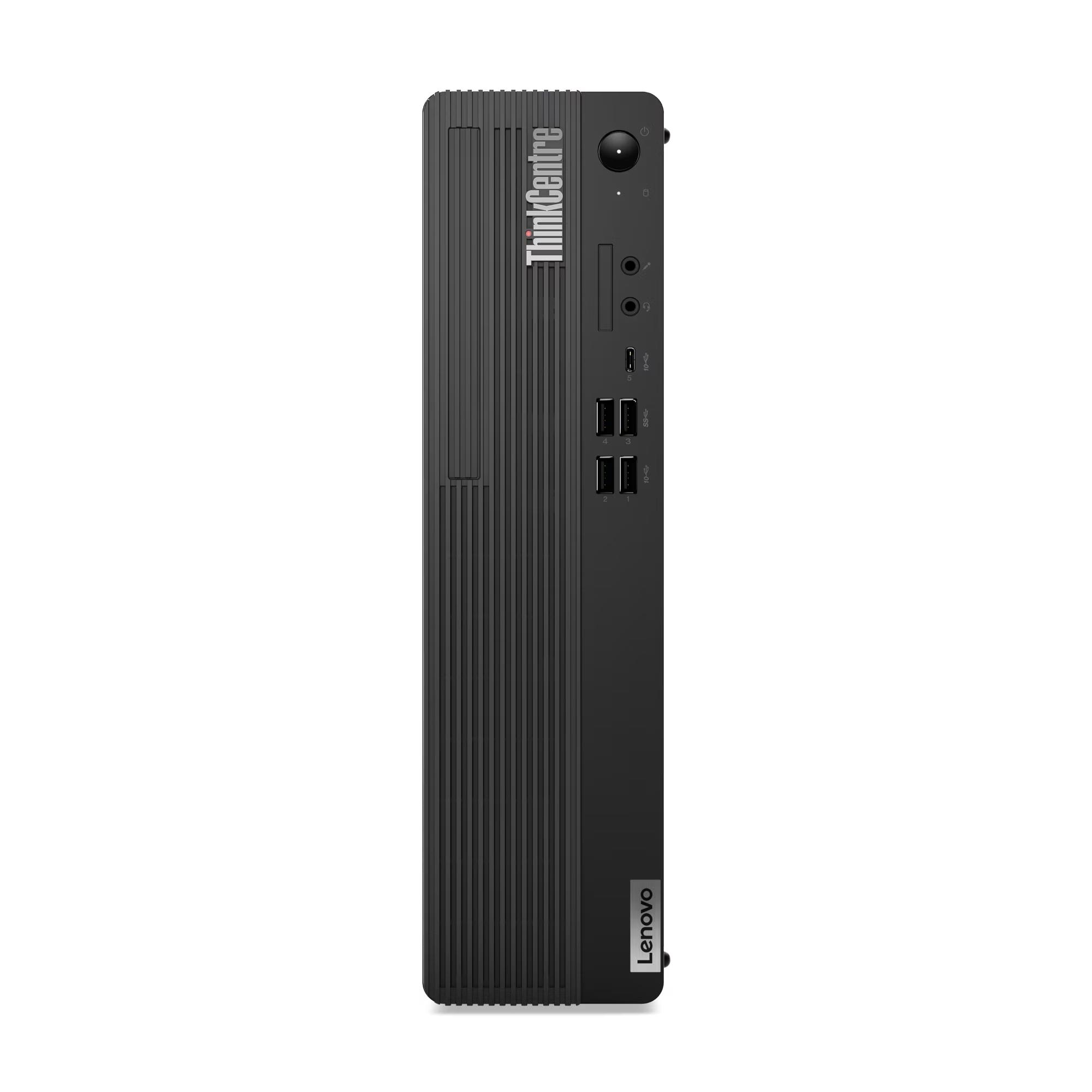

Front Ports

• 1x USB-C® (USB 10Gbps / USB 3.2 Gen 2), with 15W charging
• 2x USB-A (USB 5Gbps / USB 3.2 Gen 1)
• 2x USB-A (USB 10Gbps / USB 3.2 Gen 2)
• 1x headphone / microphone combo jack (3.5mm)
• 1x microphone (3.5mm)

Optional Front Ports (configured)

1x card reader

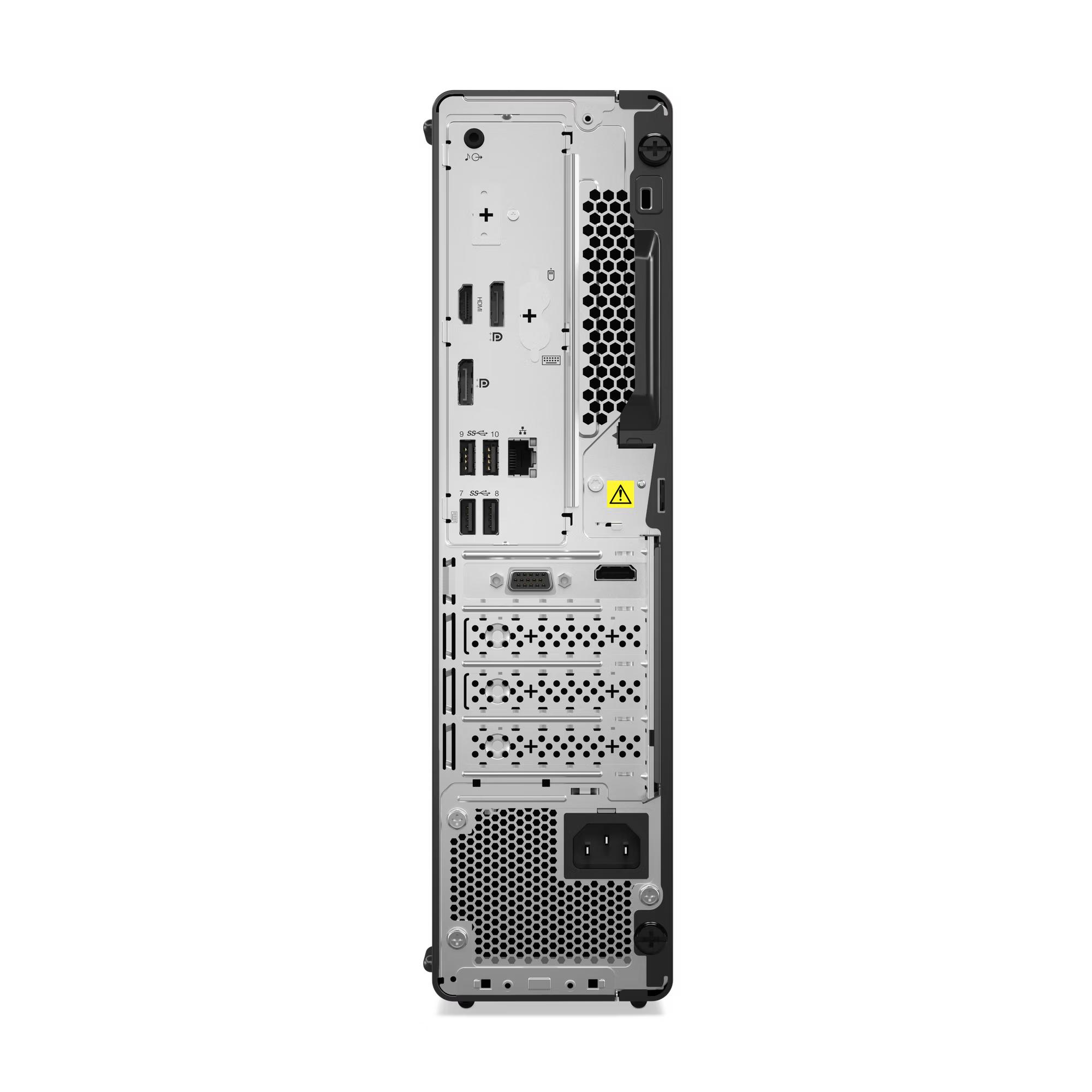

Rear Ports

• 4x USB-A (USB 5Gbps / USB 3.2 Gen 1)
• 1x HDMI® 2.1 TMDS
• 2x DisplayPort™ 1.4a (HBR2, DSC)
• 1x Ethernet (RJ-45)
• 1x line-out (3.5mm)

Optional Rear Ports (configured)

None

Security Chip

Discrete TPM 2.0, TCG certified, FIPS 140-2 certified

Fingerprint Reader

No fingerprint reader

Physical Locks

• Kensington® Security Slot™, 3 x 7 mm
• Padlock Loop

Smart Cable Clip

None

Chassis E-Lock

None

Chassis Intrusion Switch

None

System Management

Intel® vPro® Enterprise

Base Warranty

1-year, Onsite

Included Upgrade

3Y Onsite upgrade from 1Y Onsite

Green Certifications

• ErP Lot 3
• GREENGUARD®
• RoHS compliant
• TCO Certified 9.0

Other Certifications

TÜV Rheinland® Ultra Low Noise

Mil-Spec Test

MIL-STD-810H military test passed (Low Pressure [Altitude], High Temperature, Low Temperature, Temperature Shock, Humidity, Sand and Dust, Vibration, Shock, Solar Radiation, Contamination by Fluids, Salt Fog)

Operating System

Windows® 11 Pro, Arabic / English

Bundled Software

None
