Performance

• Processor: Intel Core i5-14400, 10 cores (6P + 4E) / 16 threads, P-core 2.5–4.7GHz, E-core 1.8–3.5GHz, 20MB cache
• Graphics: Integrated Intel UHD Graphics 730
• Chipset: Intel Q670
• Memory: 1x 8GB DDR5-4800 UDIMM
• Memory Slots: 2x DDR5 UDIMM (dual-channel capable)
• Max Memory: Up to 64GB DDR5
• Storage: 512GB SSD M.2 2280 PCIe 4.0x4 NVMe Opal 2.0
• Storage Support: Up to 3 drives (1x 3.5" HDD up to 2TB + 1x 2.5" HDD self-upgrade + 1x M.2 SSD up to 2TB)
• Card Reader: None
• Optical: None
• Audio: Realtek ALC623-CG HD Audio
• Speakers: 1W mono
• Power Supply: 260W, 90% efficient

Design

• Keyboard: USB Traditional Keyboard, Black, Arabic
• Mouse: USB Calliope Mouse, Black
• Expansion Slots:
  • 1x PCIe 3.0 x16, low-profile
  • 1x PCIe 3.0 x1, low-profile
  • 2x M.2 (WLAN + SSD)
• Case Color: Black
• Form Factor: Small Form Factor (SFF, 8.2L)
• Dimensions: 92.5 x 297.7 x 339.5 mm (3.6 x 11.7 x 13.4 in)
• Weight: ~5.3 kg (11.7 lbs)

Connectivity

• WLAN + Bluetooth: Intel Wi-Fi 6E AX211, 802.11ax 2x2 + BT 5.3, vPro
• Ethernet: Integrated 100/1000M (RJ-45)

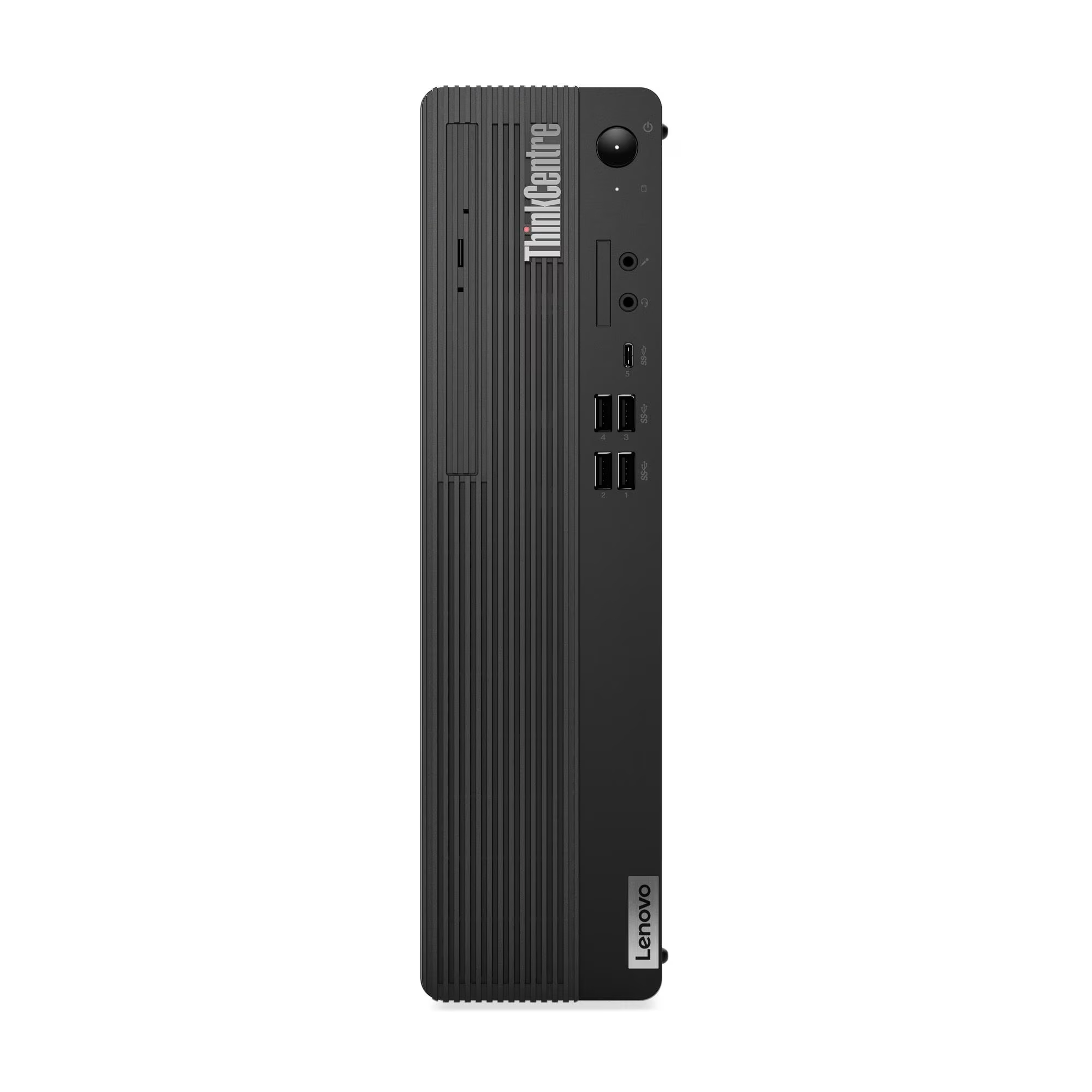

• Front Ports:
  • 1x USB-C 3.2 Gen 1 (5Gbps, 15W charging)
  • 4x USB-A 3.2 Gen 1 (5Gbps)
  • 1x headphone/mic combo (3.5mm)
  • 1x microphone (3.5mm)

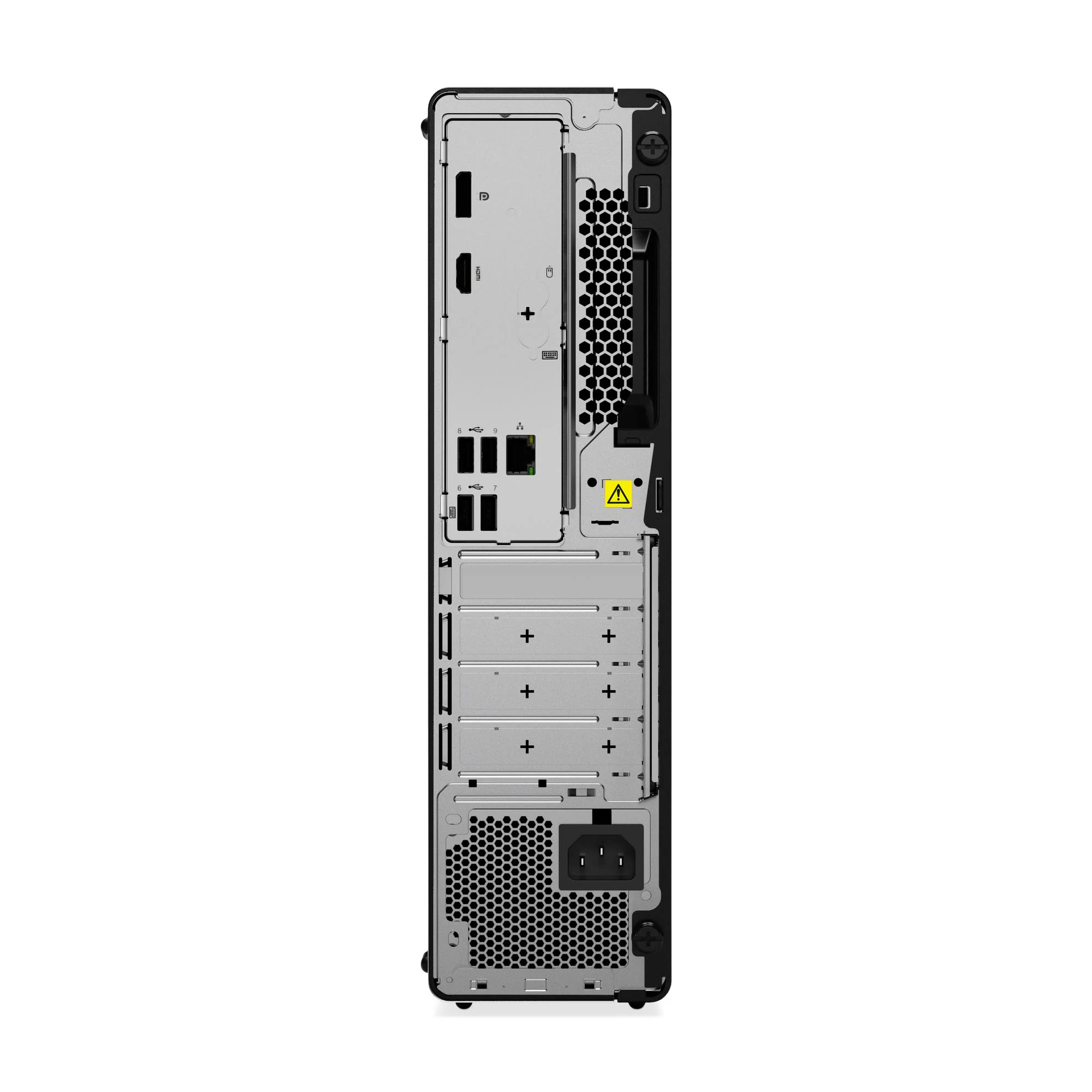

• Rear Ports:
  • 4x USB-A 2.0
  • 1x HDMI 2.1 TMDS
  • 1x DisplayPort 1.4a (HBR2, DSC)
  • 1x RJ-45 Ethernet

Security & Privacy

• Security Chip: Discrete TPM 2.0, TCG + FIPS 140-2 certified
• Fingerprint Reader: None
• Locks: Kensington Security Slot, Padlock loop
• Chassis Intrusion Switch: None

Manageability

• System Management: Non-vPro

Service

• Base Warranty: 1 year Courier or Carry-in
• Upgrade: None

Certifications

• Green: ErP Lot 3, GREENGUARD, RoHS, TCO 9.0
• Military: MIL-STD-810H passed (Altitude, High/Low Temp, Temp Shock, Humidity, Sand/Dust, Vibration, Shock, Solar Radiation, Fluids, Salt Fog)

Software

• OS: None
• Bundled: None

Accessories

• Bundled: None

Model Information

• Model: 12U8003DGR
