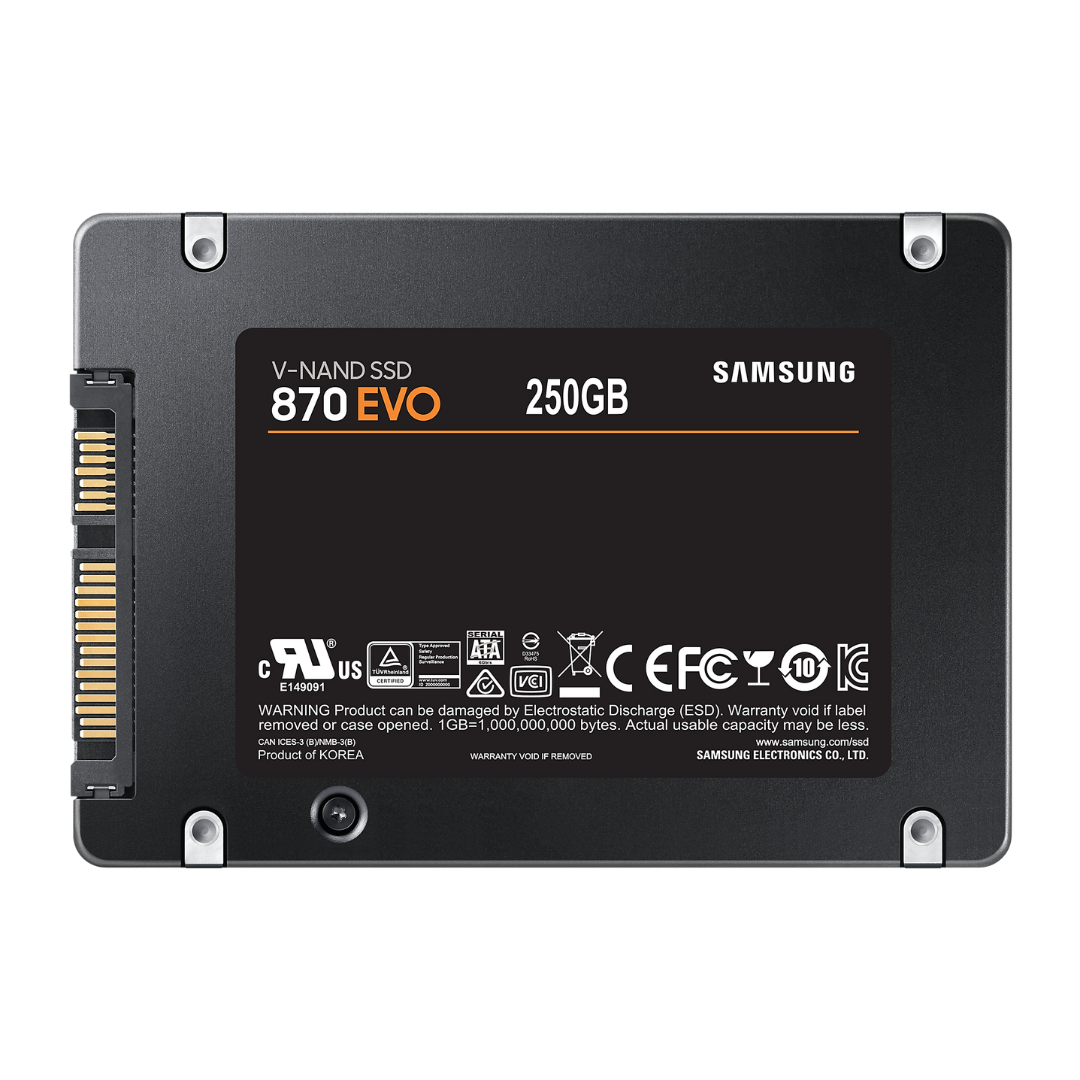

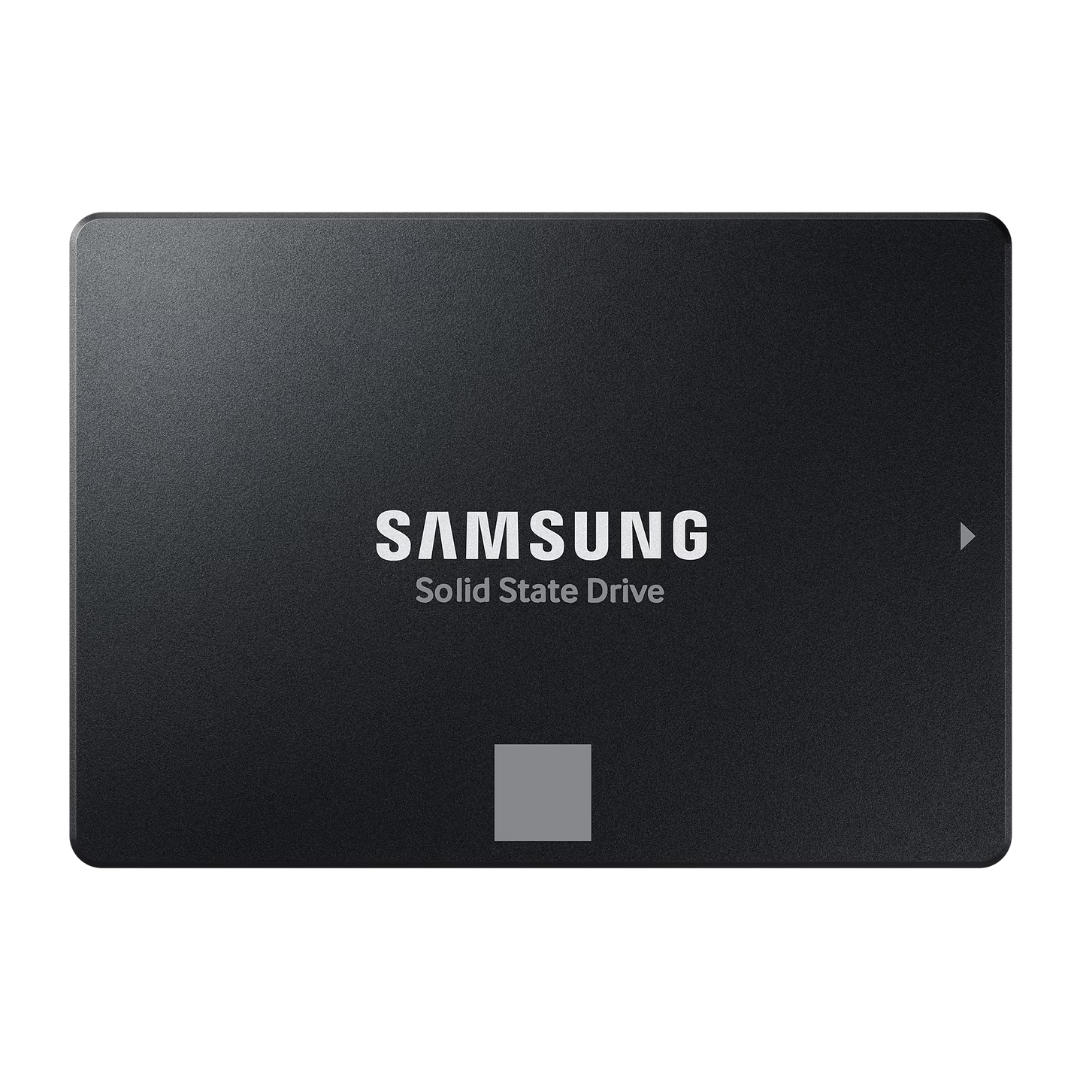

SSD 870 EVO SATA III 2.5 inch 250GB - MZ-77E250BW

Categorie:

DATA STORAGE SATA

Brand:

Samsung
None
256GB

870 EVO 250GB  2.5"

Stock
0

Product Information

General Feature

  • ApplicationClient PCs
  • Capacity250 GB (1 GB=1 Billion byte by IDEMA) * Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise)
  • Form Factor2.5 inch
  • InterfaceSATA 6 Gb/s Interface, compatible with SATA 3 Gb/s & SATA 1.5 Gb/s interface
  • Dimension (WxHxD)100 X 69.85 X 6.8 (mm)
  • WeightApporx. 45.0g Weight
  • Storage MemorySamsung V-NAND 3bit MLC
  • ControllerSamsung MKX Controller
  • Cache MemorySamsung 512 MB Low Power DDR4 SDRAM

Special Feature

  • TRIM SupportTRIM Supported
  • S.M.A.R.T SupportS.M.A.R.T Supported
  • GC (Garbage Collection)Auto Garbage Collection Algorithm
  • Encryption SupportAES 256-bit Encryption (Class 0),TCG/Opal, IEEE1667 (Encrypted drive)
  • WWN SupportWorld Wide Name supported
  • Device Sleep Mode SupportYes

Performance

  • Sequential ReadUp to 560 MB/s Sequential Read * Performance may vary based on system hardware & configuration
  • Sequential WriteUp to 530 MB/s Sequential Write * Performance may vary based on system hardware & configuration ** Measured with Intelligent TurboWrite technology being activated
  • Random Read (4KB, QD32)Up to 98,000 IOPS Random Read * Performance may vary based on system hardware & configuration ** Measured with Intelligent TurboWrite technology being activated
  • Random Write (4KB, QD32)Up to 88,000 IOPS Random Write * Performance may vary based on system hardware & configuration ** Measured with Intelligent TurboWrite technology being activated
  • Random Read (4KB, QD1)Up to 13,000 IOPS Random Read * Performance may vary based on system hardware & configuration ** Measured with Intelligent TurboWrite technology being activated
  • Random Write (4KB, QD1)Up to 36,000 IOPS Random Write * Performance may vary based on system hardware & configuration ** Measured with Intelligent TurboWrite technology being activated

Environment

  • Average Power Consumption (system level)Average: 2.2 W *Maximum: 3.5 W (Burst mode)* Actual power consumption may vary depending on system hardware & configuration
  • Power consumption (Idle)Max. 30 mW * Actual power consumption may vary depending on system hardware & configuration
  • Allowable Voltage5V ± 5% Allowable voltage
  • Reliability (MTBF)1.5 Million Hours Reliability (MTBF)
  • Operating Temperature0 - 70 ℃ Operating Temperature
  • Shock1,500 G & 0.5 ms (Half sine)

Accessories

  • Installation KitNot Available

Software

  • Management SWMagician Software for SSD management, Data Migration Software for SSD upgrade

Warranty

  • 5 Years Limited Warranty or 150 TBW Limited Warranty
