ThinkCentre-M70q-Gen-4-Core-i7-13700T-12E30030GR

Categorie:

COMPUTERS Desktops

Brand:

Intel Core i7
8GB
512GB

ThinkCentre-M70q-Gen-4-Core-i7-13700T-12E30030GR

Stock
0
ThinkCentre-M70q-Gen-4-Core-i7-13700T-12E30030GR
ThinkCentre-M70q-Gen-4-Core-i7-13700T-12E30030GR
ThinkCentre-M70q-Gen-4-Core-i7-13700T-12E30030GR
ThinkCentre-M70q-Gen-4-Core-i7-13700T-12E30030GR
ThinkCentre-M70q-Gen-4-Core-i7-13700T-12E30030GR

Product Information




Processor
Intel® Core i7-13700T, 16C (8P + 8E) / 24T, Max Turbo up to 4.9GHz, P-core 1.4 / 4.8GHz, E-core 1.0 / 3.6GHz, 30MB
Graphics
Integrated Intel® UHD Graphics 770
Chipset
Intel® Q670 Chipset
Memory
1x 8GB SO-DIMM DDR4-3200
Memory Slots
Two DDR4 SO-DIMM slots, dual-channel capable
Max Memory
Up to 64GB DDR4-3200
Storage
512GB SSD M.2 2280 PCIe® 4.0x4 NVMe® Opal 2.0
Storage Support
Up to two drives, 1x 2.5" HDD + 1x M.2 SSD • 2.5" HDD up to 1TB • M.2 SSD up to 2TB
Card Reader
No card reader
Optical
None
Audio Chip
High Definition (HD) Audio, Realtek® ALC256VB codec
Speakers
2Wx1
Power Supply
135W 90% Adapter
Keyboard
USB Traditional Keyboard, Black, Arabic
Mouse
USB Calliope Mouse, Black
Optional Bay
None
Expansion Slots
Two M.2 slots (one for WLAN, one for SSD)
Case Color
Black
Stand
None
Adapter Cage
None
Toolless Chassis Screw
Toolless Chassis Screw
Dust Filter
None
Mounting
1x VESA Mount
IO Box
No IO box
Form Factor
Tiny (1L)
Dimensions (WxDxH)
179 x 182.9 x 36.5 mm with rubber feet (7.05 x 7.2 x 1.44 inches with rubber feet)
Weight
Around 1.25 kg (2.76 lbs)
CONNECTIVITY
Ethernet
Integrated 100/1000M
WLAN + Bluetooth
Realtek® Wi-Fi® 6 RTL8852BE, 11ax 2x2 + BT5.1

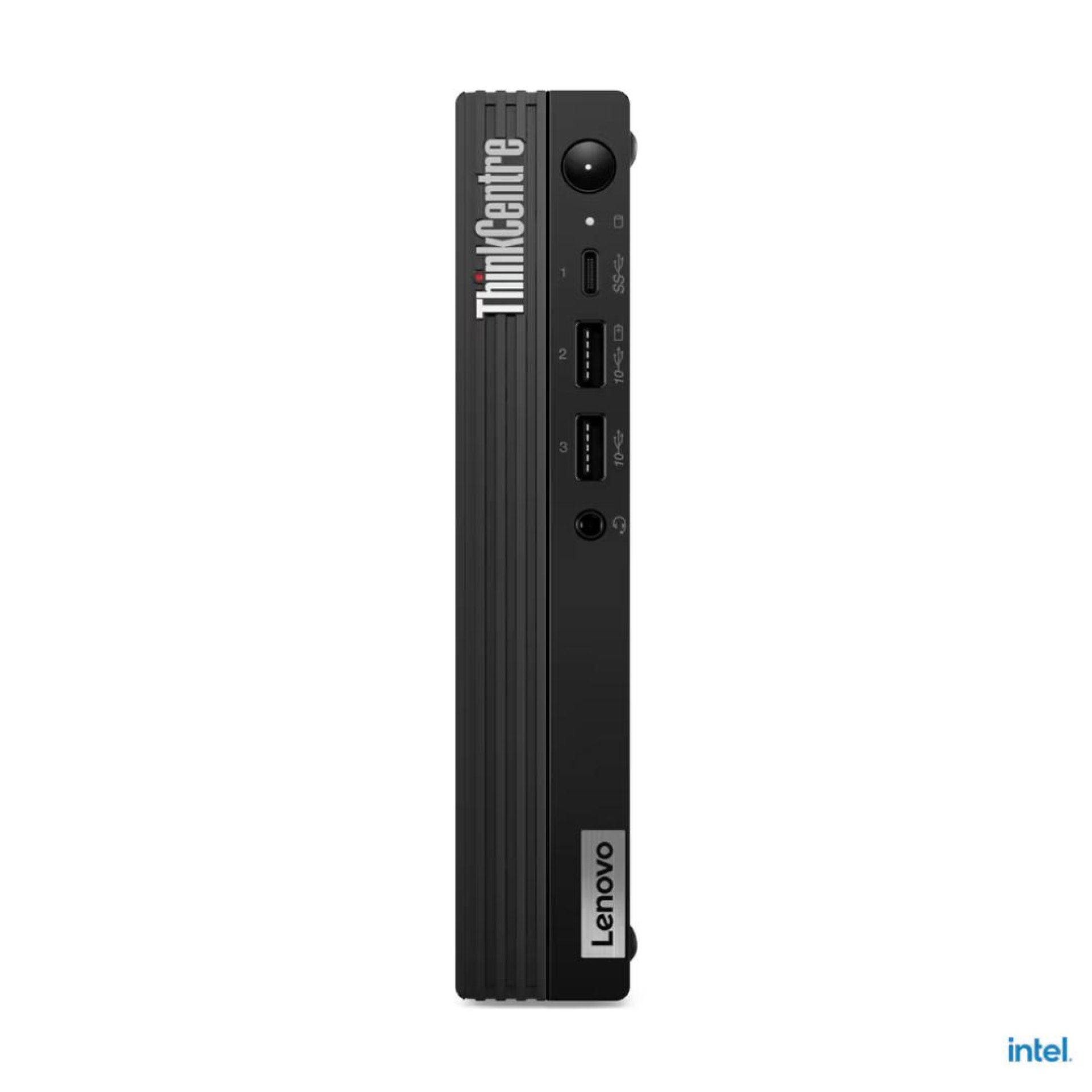

Front Ports
  • 1x USB-C® 3.2 Gen 1 (support data transfer and 5V@0.9A charging)
  • 1x USB 3.2 Gen 2 (Always On and 5V@2.1A charging)
  • 1x USB 3.2 Gen 2
  • 1x headphone / microphone combo jack (3.5mm)
Optional Front Ports (configured)
None

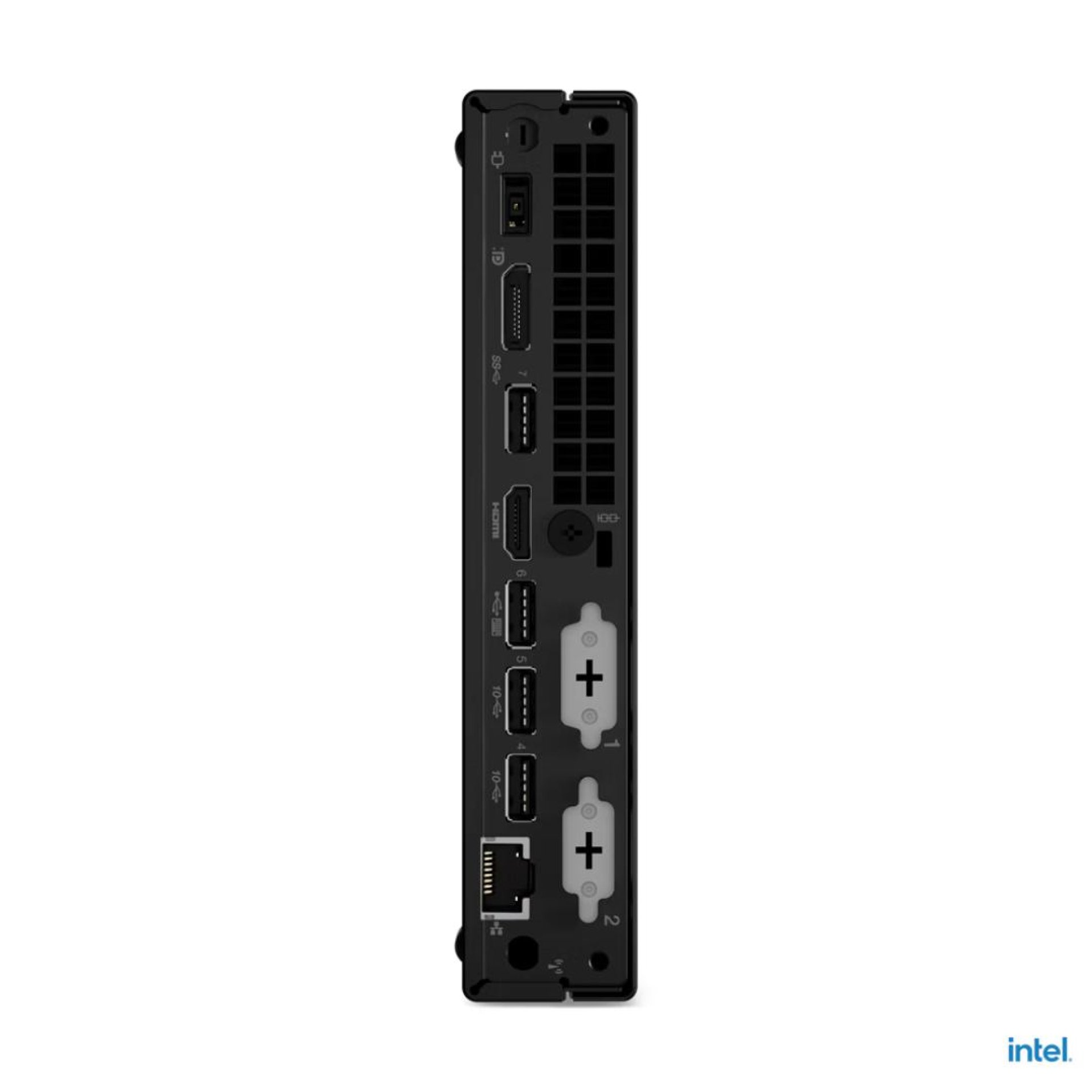

Rear Ports
  • 1x USB 2.0
  • 1x USB 3.2 Gen 1
  • 2x USB 3.2 Gen 2
  • 1x HDMI® 2.1 TMDS
  • 1x DisplayPort™ 1.4a (HBR2, DSC)
  • 1x Ethernet (RJ-45)
Optional Rear Ports (configured)
None
Monitor Cable
None
Security Chip
Discrete TPM 2.0, TCG certified
Fingerprint Reader
No fingerprint reader
Physical Locks
Kensington® Security Slot™, 3 x 7 mm
Kensington Cable Lock
None
Chassis Intrusion Switch
Chassis Intrusion Switch
System Management
Non-vPro®
Base Warranty
1-year, Onsite
Green Certifications
  • EPEAT Silver Registered
  • ENERGY STAR® 8.0
  • ErP Lot 3 and Lot 7
  • RoHS compliant
  • TCO Certified
Other Certifications
TÜV Rheinland® Low Noise
Mil-Spec Test
MIL-STD-810H military test passed (Low Pressure [Altitude], High Temperature, Low Temperature, Humidity, Sand and Dust, Vibration, Shock, Solar Radiation, Contamination by Fluids, Salt Fog, Temperature Shock)
Operating System
Windows® 11 Pro, Arabic / English
Bundled Software
None
