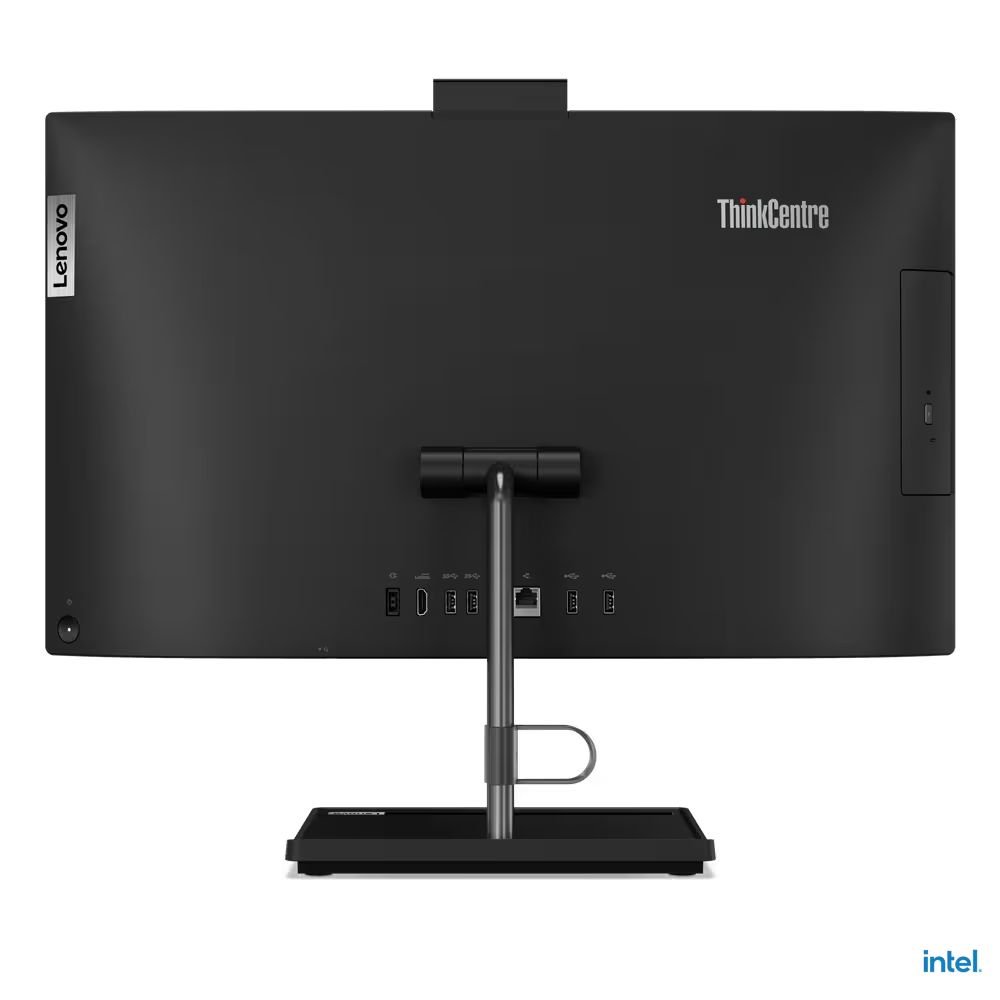

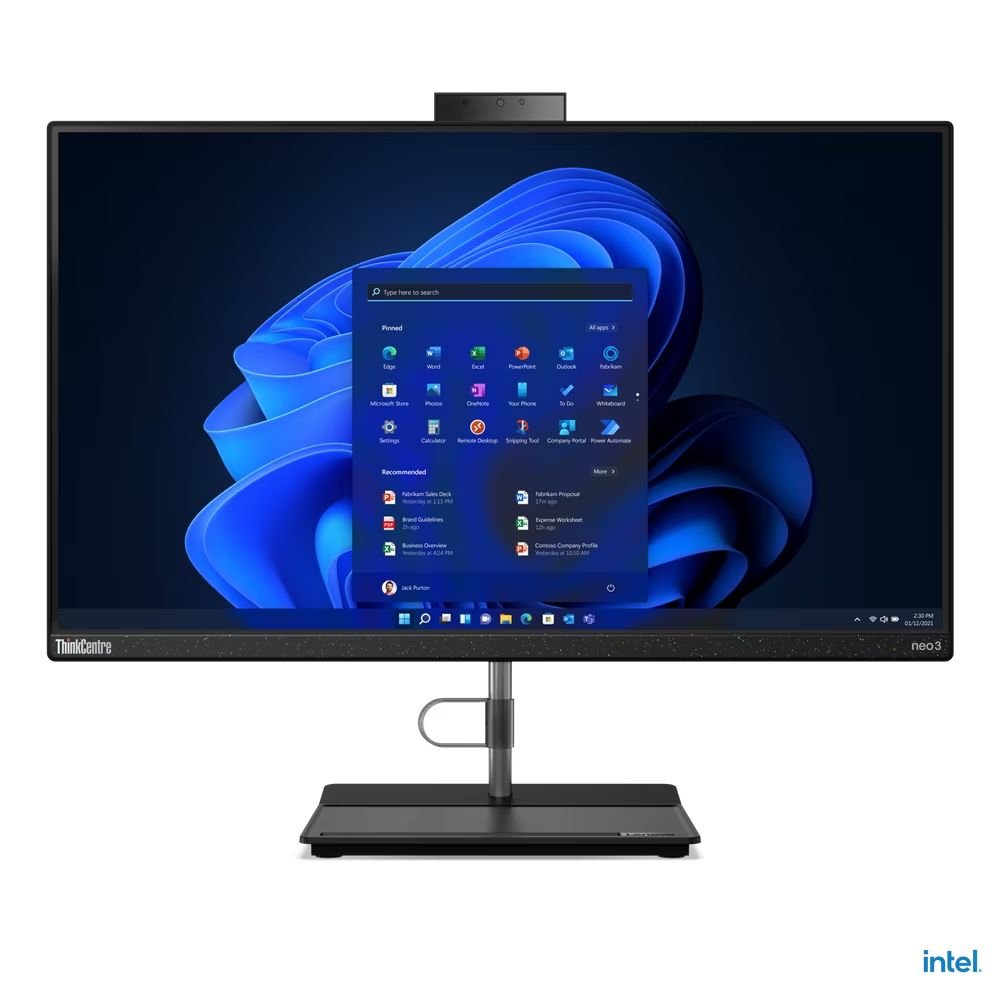

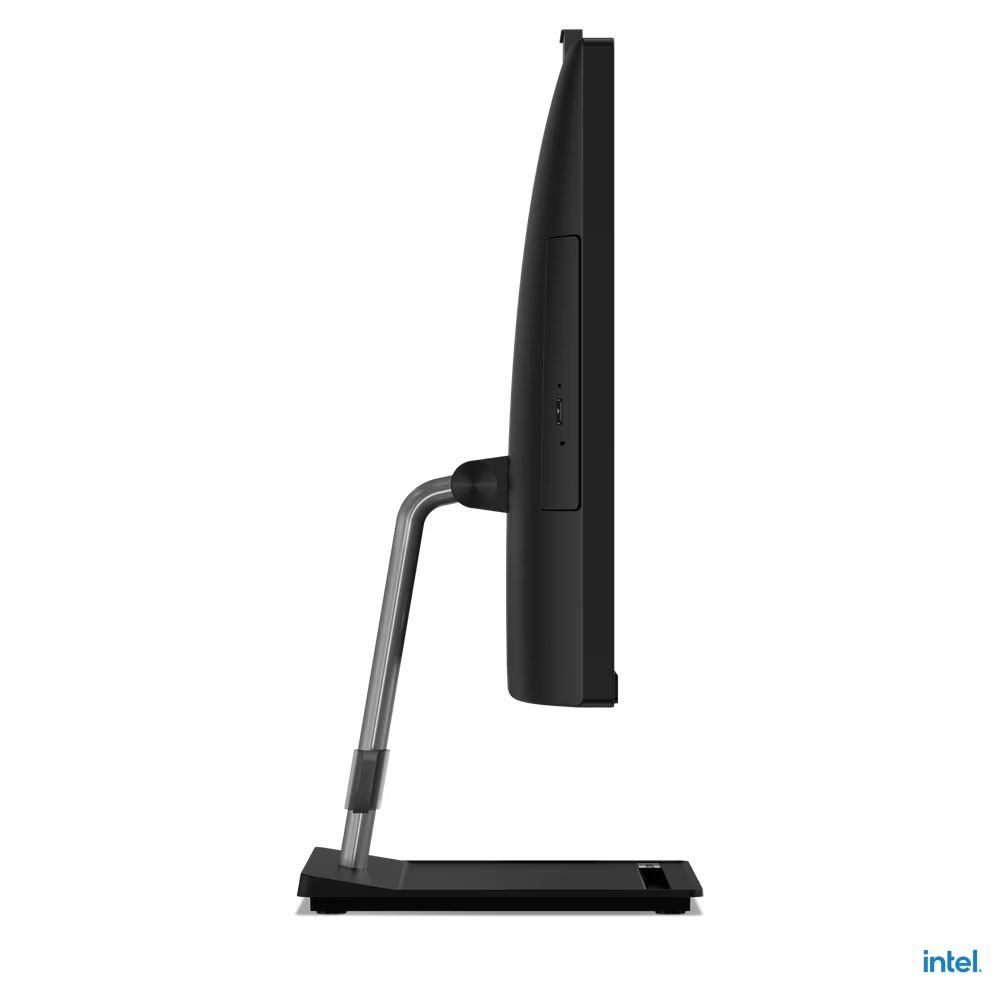

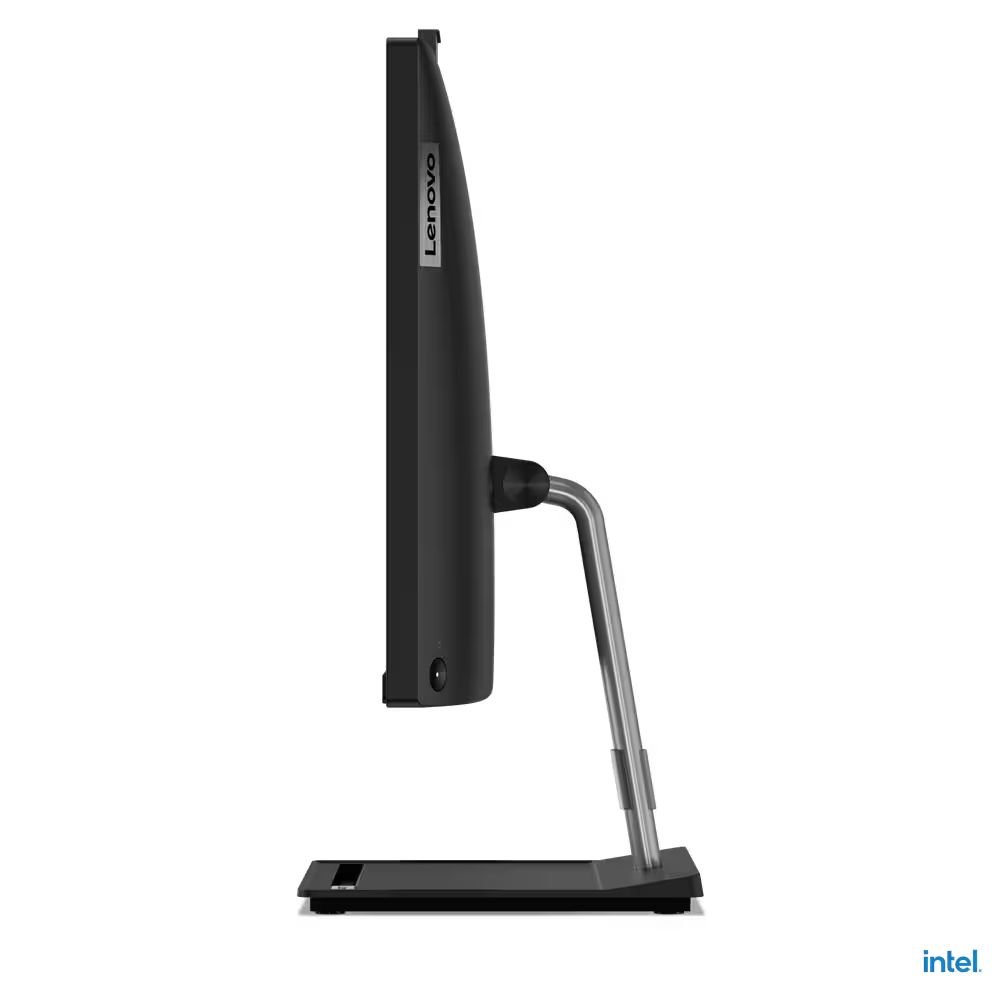

ThinkCentre neo 30a 24 - Intel Core i7-1260P - 12B000E6AX
Categorie:
COMPUTERS Desktops MonitorsBrand:
LenovoThinkCentre neo 30a 24 - Intel Core i7-1260P - 12B000E6AX
Product Information
| Processor | Intel® Core™ i7-1260P, 12C (4P + 8E) / 16T, P-core 2.1 / 4.7GHz, E-core 1.5 / 3.4GHz, 18MB |
| Graphics | Integrated Intel® Iris® Xe Graphics Functions as UHD Graphics |
| Chipset | Intel® SoC Platform |
| Memory | 1x 8GB SO-DIMM DDR4-3200 |
| Memory Slots | Two DDR4 SO-DIMM slots, dual-channel capable |
| Max Memory | Up to 16GB DDR4-3200 |
| Storage | 512GB SSD M.2 2280 PCIe® 4.0x4 NVMe® Opal 2.0 |
| Storage Support | Up to two drives, 1x 2.5" HDD + 1x M.2 SSD • 2.5" HDD up to 1TB • M.2 SSD up to 1TB |
| For installing HDD storage, assembly kits are needed. The kits only come with HDD models. | |
| Card Reader | No card reader |
| Optical | DVD±RW |
| Audio Chip | High Definition (HD) Audio, Realtek® ALC256 codec |
| Speakers | 3Wx2 |
| Camera | HD 720p |
| Microphone | 2x, Array |
| Power Supply | 90W 89% Adapter |
| Display | 23.8" FHD (1920x1080) IPS 250nits Anti-glare, 72% NTSC |
| Touchscreen | None |
| Keyboard | USB Calliope Keyboard, Black, Arabic |
| Mouse | USB Calliope Mouse, Black |
| Expansion Slots | Two M.2 slots (one for WLAN, one for SSD) |
| Case Color | Raven Black |
| Stand | Monitor Stand |
| Mounting | None |
| Form Factor | AIO (23.8 inches) |
| Dimensions (WxDxH) | 541 x 207.5 x 433.8 mm (21.3 x 8.17 x 17.1 inches) |
| Weight | Around 6.7 kg (14.8 lbs) |
| Ethernet | Integrated 100/1000M |
| WLAN + Bluetooth | Intel® Wi-Fi® 6 AX201, 11ax 2x2 + BT5.1 |
| Rear Ports | 2x USB 2.0 |
| 2x USB 3.2 Gen 2 | |
| 1x HDMI®-out | |
| 1x Ethernet (RJ-45) | |
| 1x power connector | |
| Left Ports | None |
| Optional Left Ports (configured) | None |
| Right Ports | None |
| Optional Right Ports (configured) | None |
| Monitor Cable | No monitor cable |
| Security Chip | Firmware TPM 2.0 integrated in SoC |
